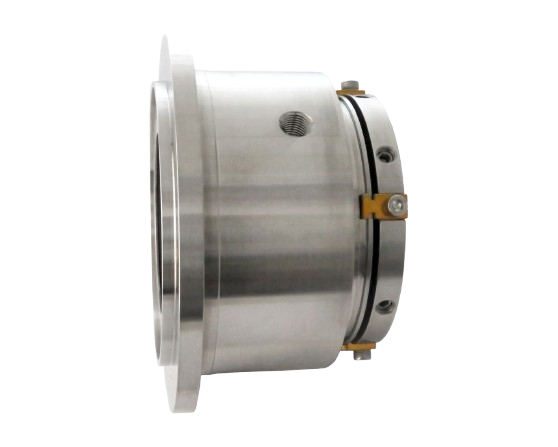

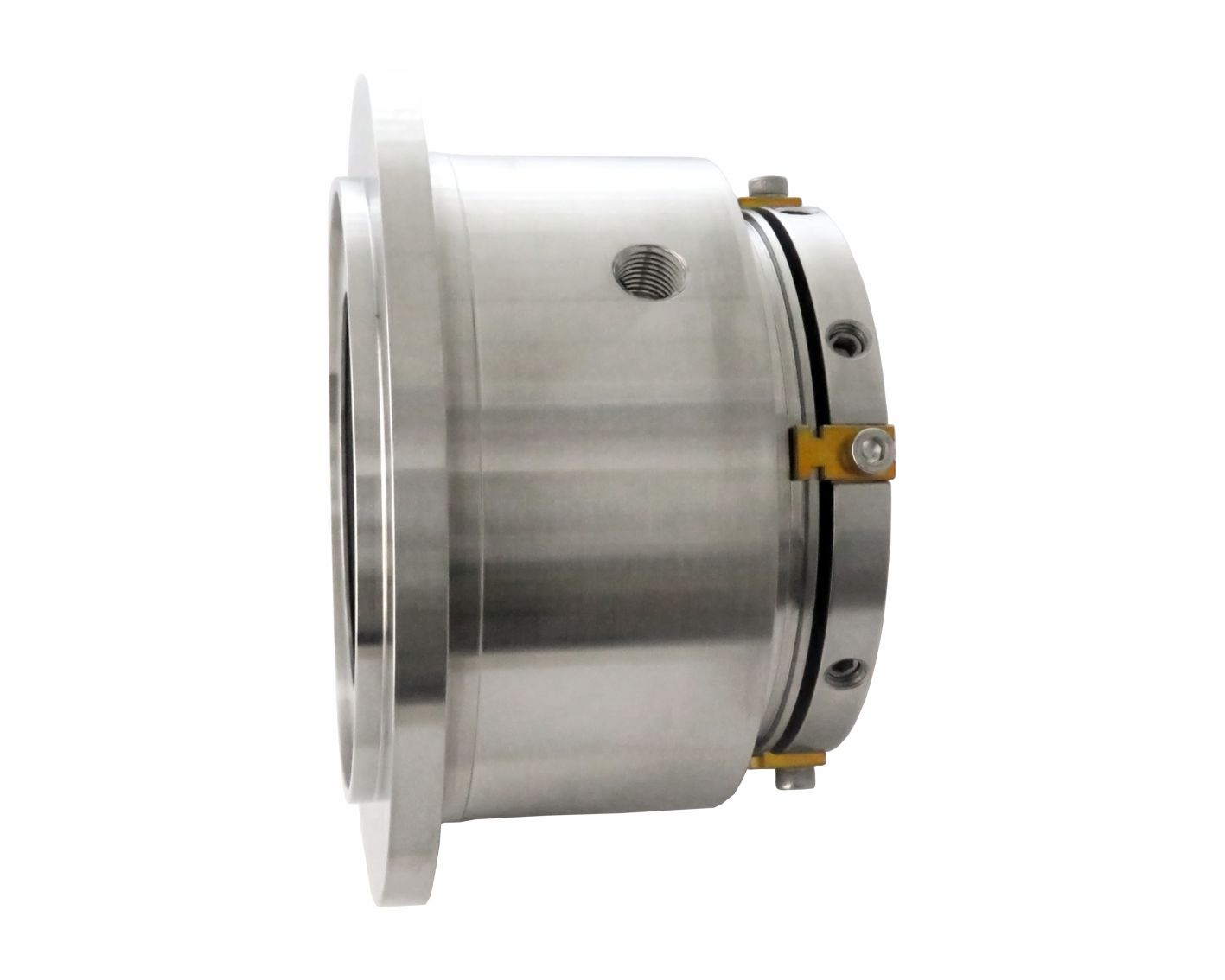

VTX Dual Seals

VTX Dual Seals

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Double pressure balanced
  • Designed with integrated pumping device for increased efficiency in circulation
  • Suitable for eccentric screw pumps

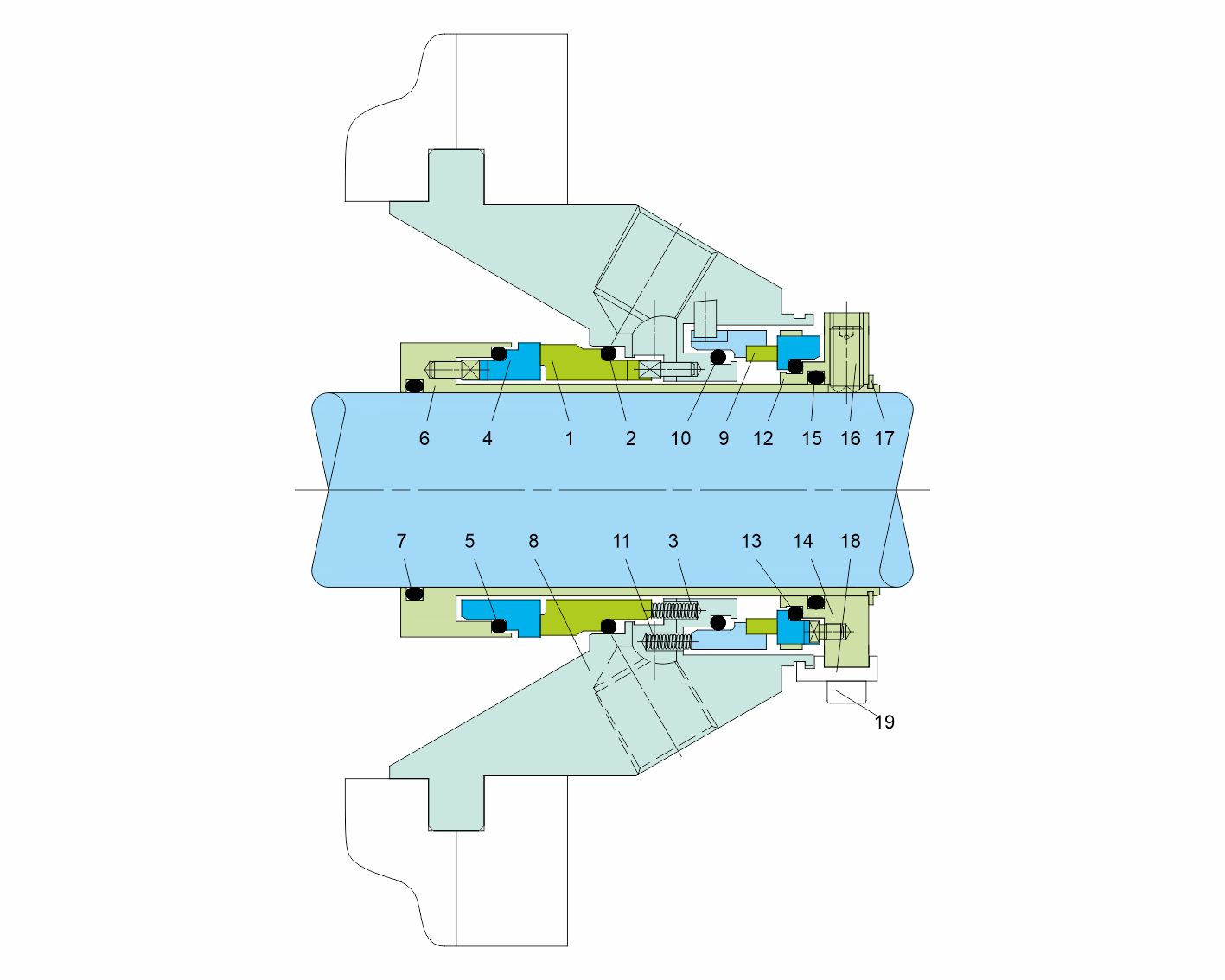

Details
Item No. Description
1 Seal face
2,5,7,10,13,15 O-Ring
3 Spring
4,12 Seat
6 Shaft sleeve
8 Cover
9 Seal Face
11 Spring
14 Driver
16 Set screw
17 Retaining Ring
18 Assembly Fixture
19 HSH Cap Screw

VTX
CTX seals with modified cover for eccentric screw pumps.
Example Pumps: Seepex BN, Netzsch NM...S, NM...B, NE (P), Allweiler AE, AEB, AED, Robbins & Myers / Moyno 2000 CC, and Mono E-Range.
