Mechanical Seals As Per API 682

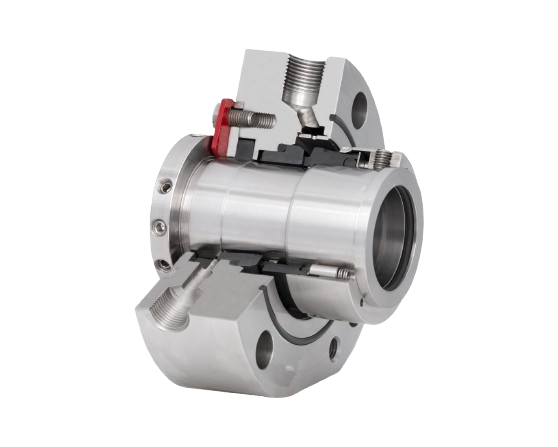

B750VN

B750VN

Product Description

  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Category 2 and 3, Type A, Arrangement 1
  • Design in accordance to API 682 / ISO 21049
  • Pumping device available for increased efficiency in circulation (B750VP)
  • Rotary unit with multiple springs

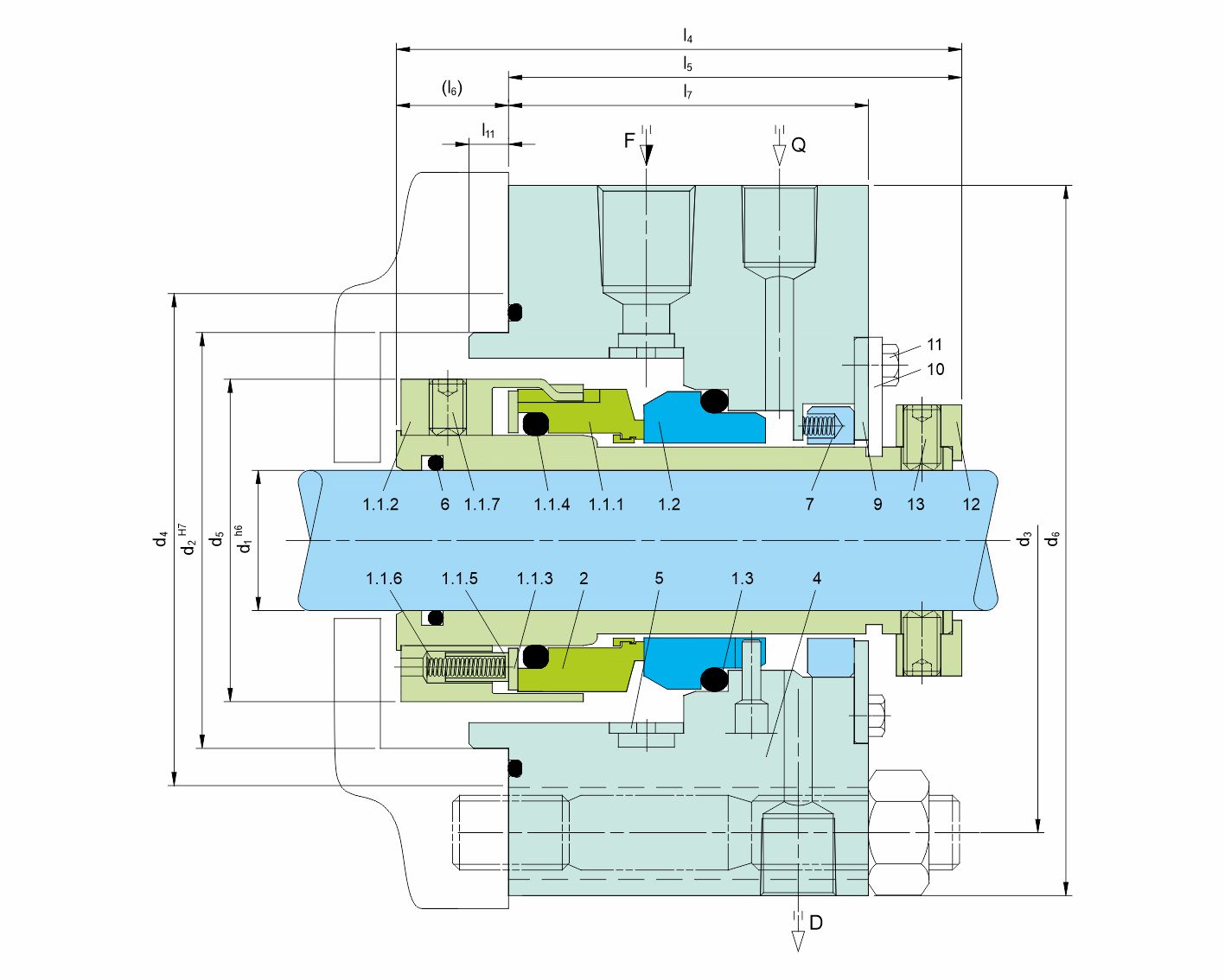

Details
Item No. Description
1.1.1 Seal face
1.1.2 Driver
1.1.3 Thrust ring
1.1.4, 1.3, 6 ,8 O-Ring
1.1.5 Sleeve
1.1.6 Spring
1.1.7 Set screw
1.2 Seat
2 Shaft sleeve
4 Housing
5 Insert
7 Trottle ring
9 Washer
10 Assembly fixture
11 Hexagon bolt
12 Set ring
13 Set screw
