Supply Systems & Components

BFS1016-BFS1010
Thermosiphon Systems

BFS1016-BFS1010

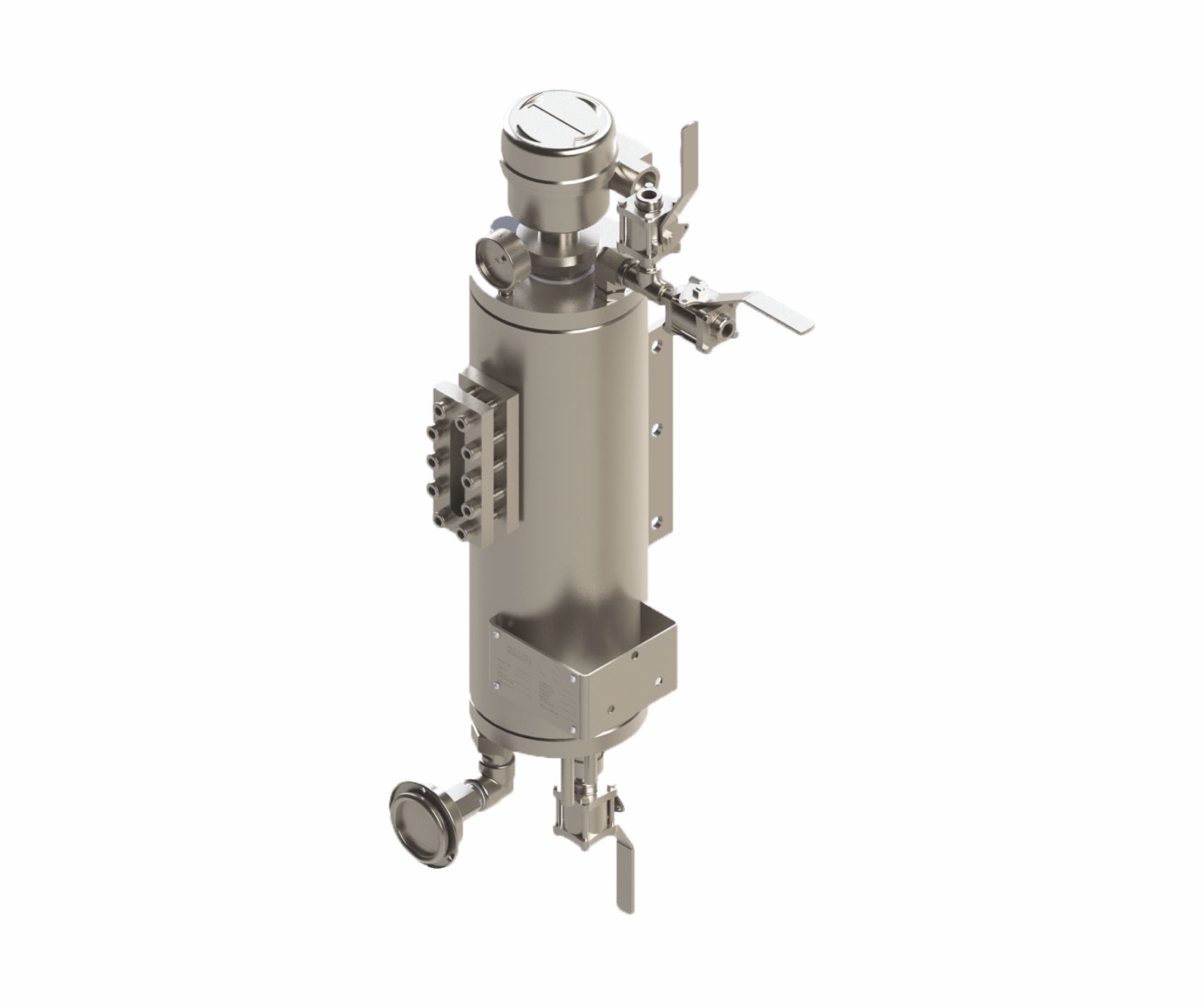

Product Description

  • Circulation in accordance with API 682 / ISO 21049: Plan 52, Plan 53A
  • BFS1016 system is employed for applications in sealing systems with a wide variety of operating parameters for supplying buffer/barrier fluid to double and tandem mechanical seals. The BFS1016 system is available in standard sizes with flat ends, sight-glasses for level monitoring and with or without cooling coil. BFS1016 system is equipped as a standard with all the necessary system connections and brackets.

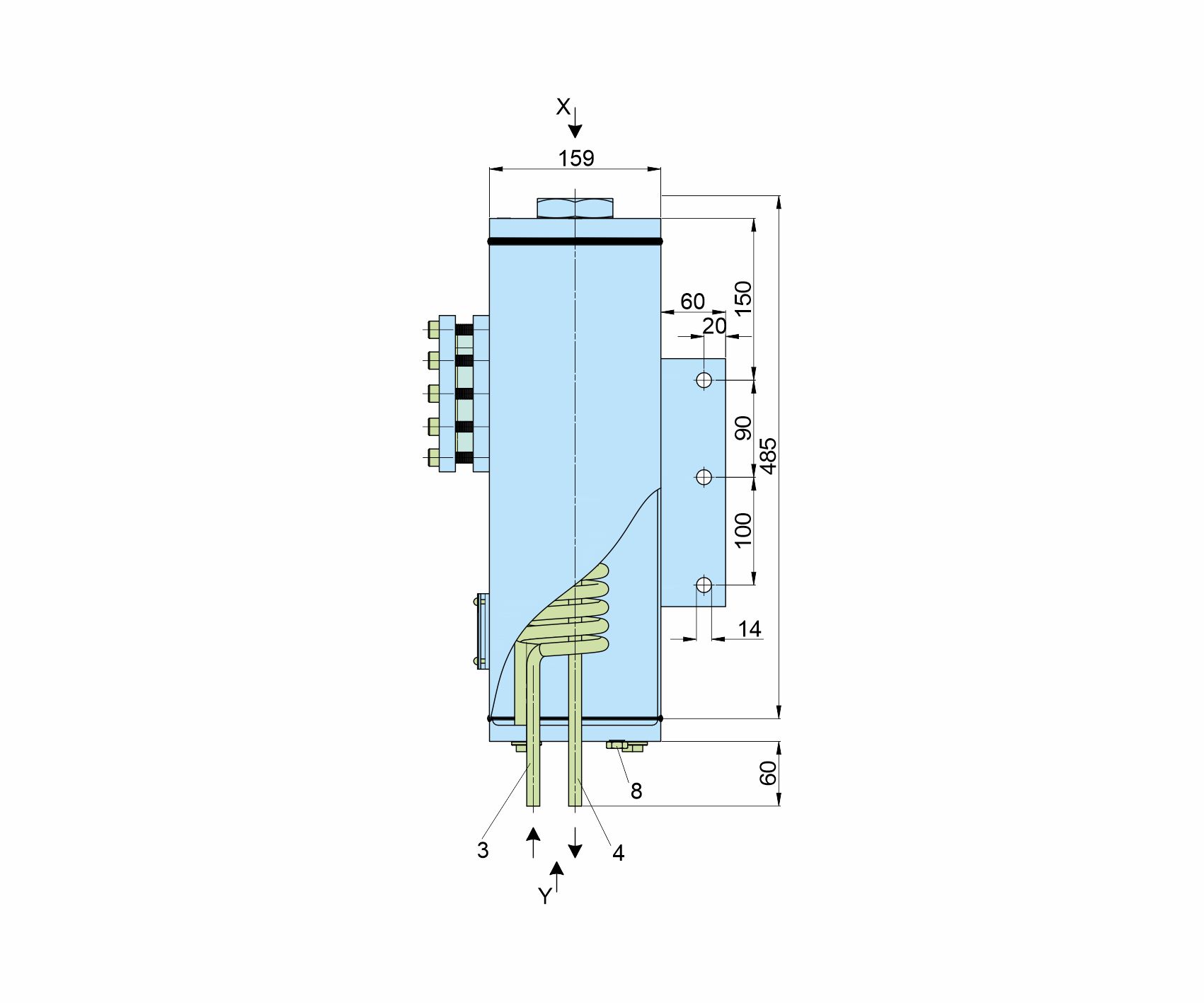

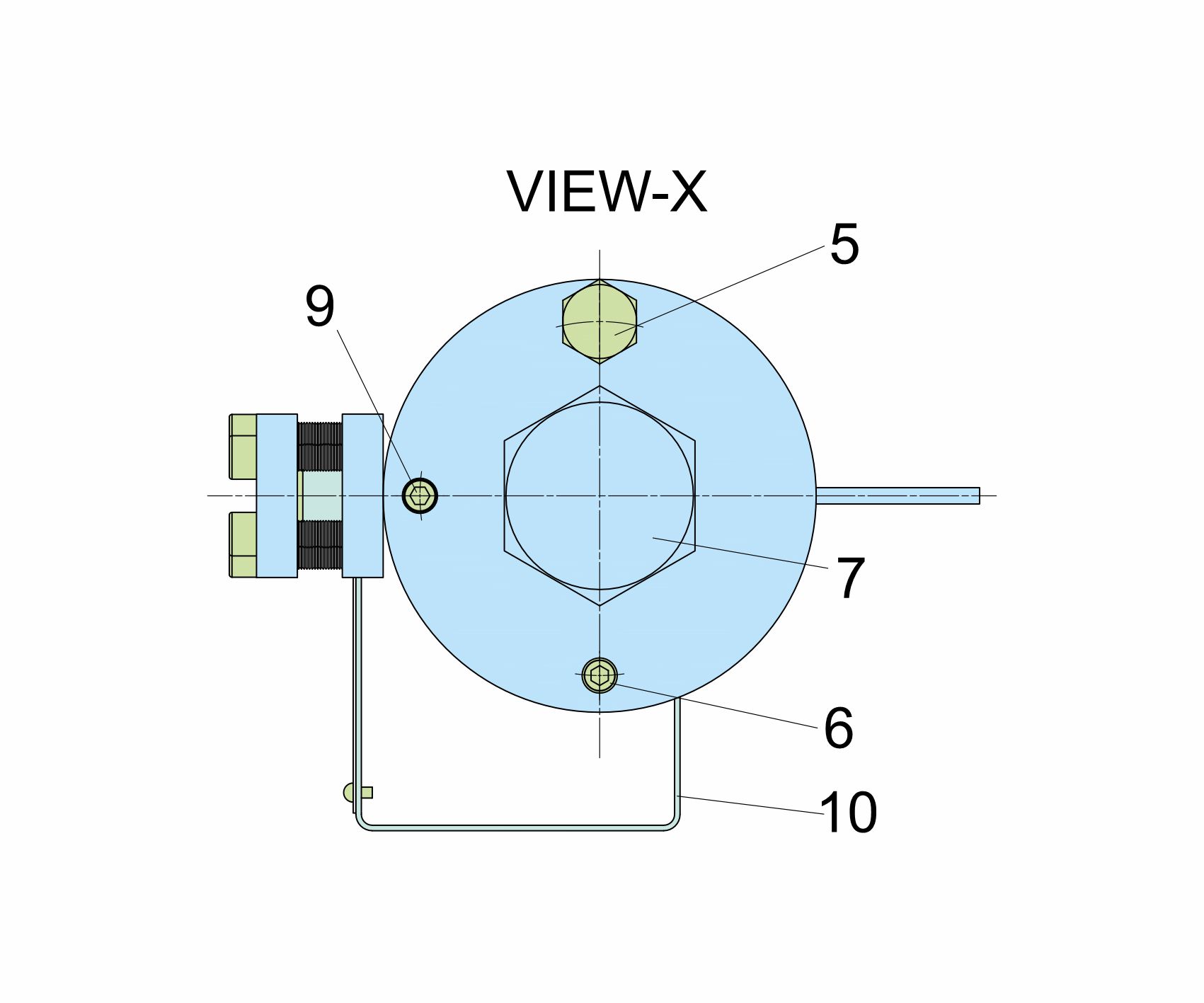

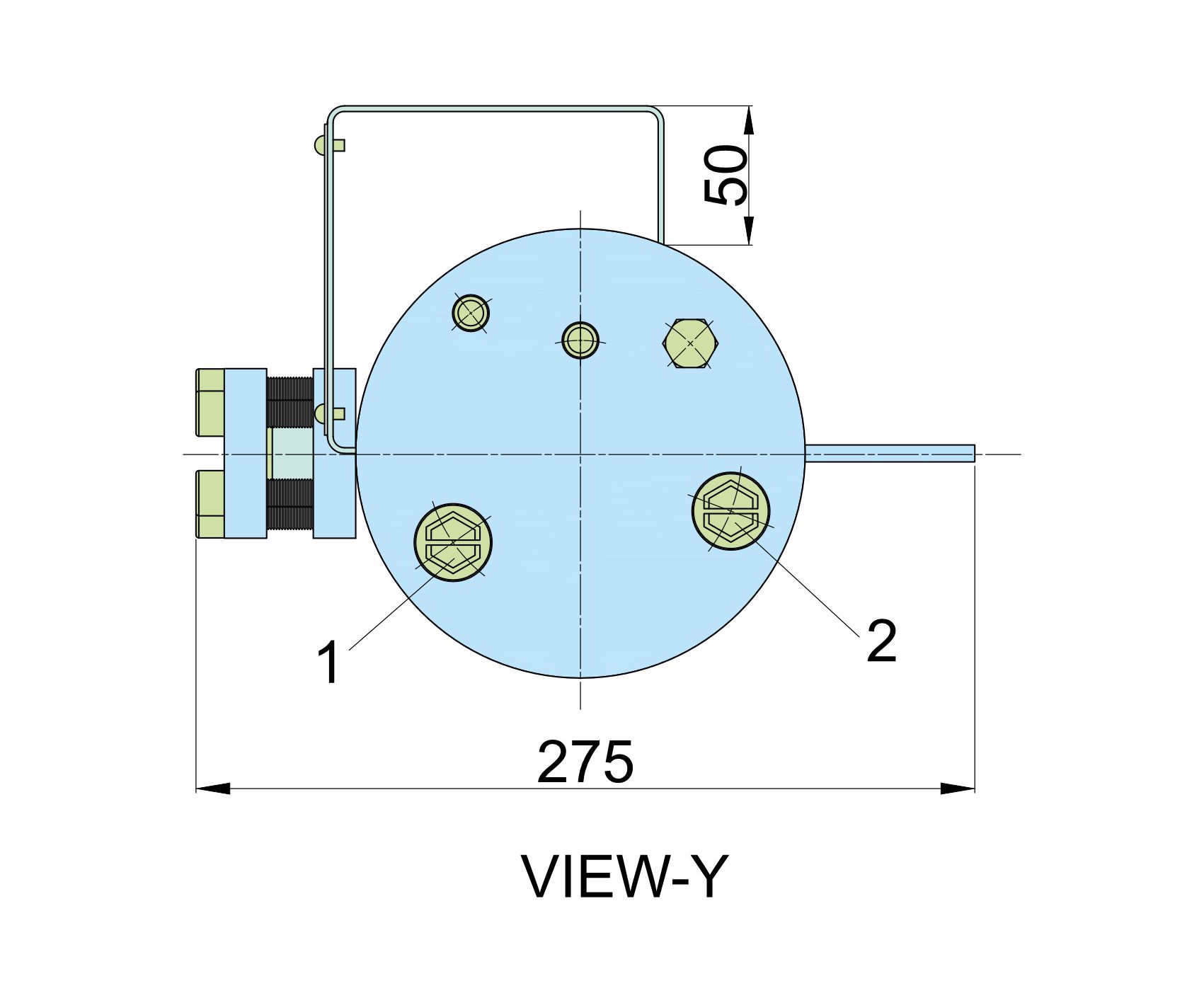

Details
Item No. Description
1 Buffer/barrier fluid IN (G1/2")
2 Buffer/barrier fluid OUT (G1/2")
3 Cooling water IN
(pipe 12 x 1·55 mm)
4 Cooling water OUT Cooling water OUT (pipe 12 x 1·55 mm)
5 Filling connection with cap (G1/2")
6 Pressure gas connection (1/4" NPT)
7 Connection for level switch (G2")
8 Connection for refill unit (G1/8")
9 Connection for pressure gauge (1/4"NPT)
10 Bracket for refill unit
