B750VN Single Seal
API 682 4th Edition Category 2&3
Seal Type A (Rotating)
Configuration 1CW-FL (Contacting Wet – Floating throttle bushing)
Product Description
- API 682 Category 2 and 3, Type A, Arrangement 1
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Pumping device available for increased efficiency in circulation
- Rotary unit with multiple springs

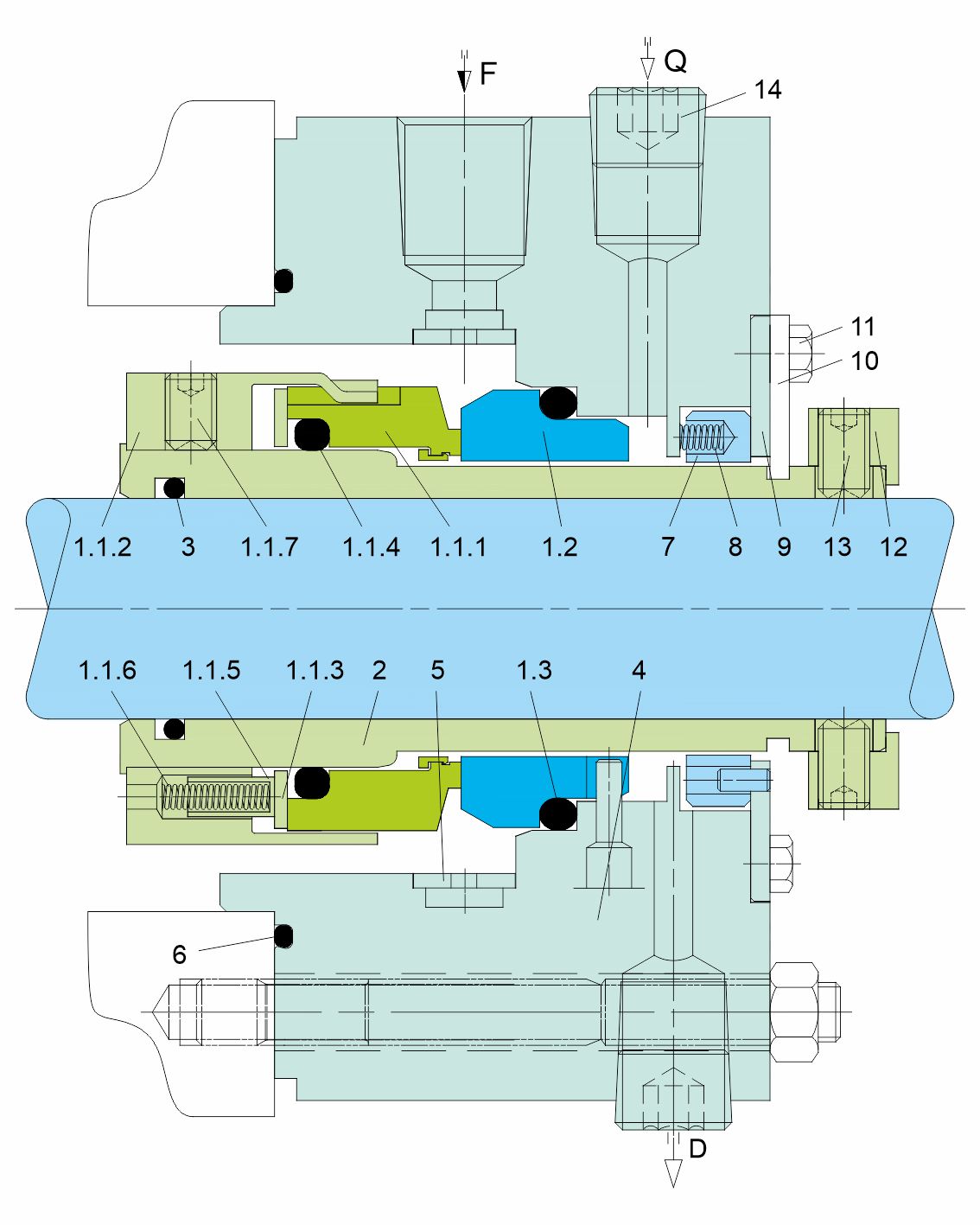

Details | |
---|---|
Item No. | Description |
1.1.1 | Seal ring |
1.1.2 | Driver |
1.1.3 | Thrust ring |
1.1.4,1.3,3,6 | O-ring |
1.1.5 | Spring Sleeve |
1.1.6,8 | Spring |
1.1.7,13 | Set screw |
1.2 | Mating ring |
2 | Shaft sleeve |
4 | Gland |
5 | Multi-flow distributor |
7 | Throttle bushing |
9 | Washer |
10 | Setting plate |
11 | Hexagon bolt |
12 | Set ring |
14 | Plug |
F | Flush |
Q | Quench |
D | Drain |
