Split Seals

SPX

SPX

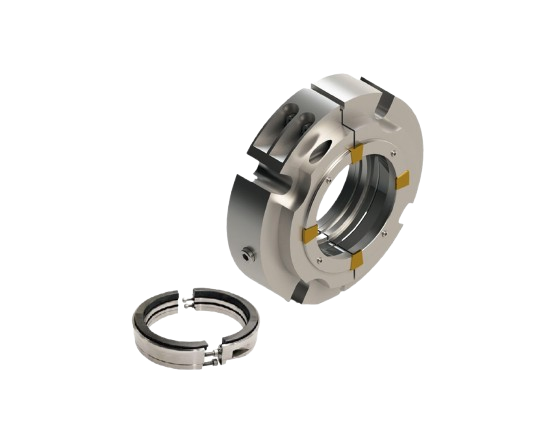

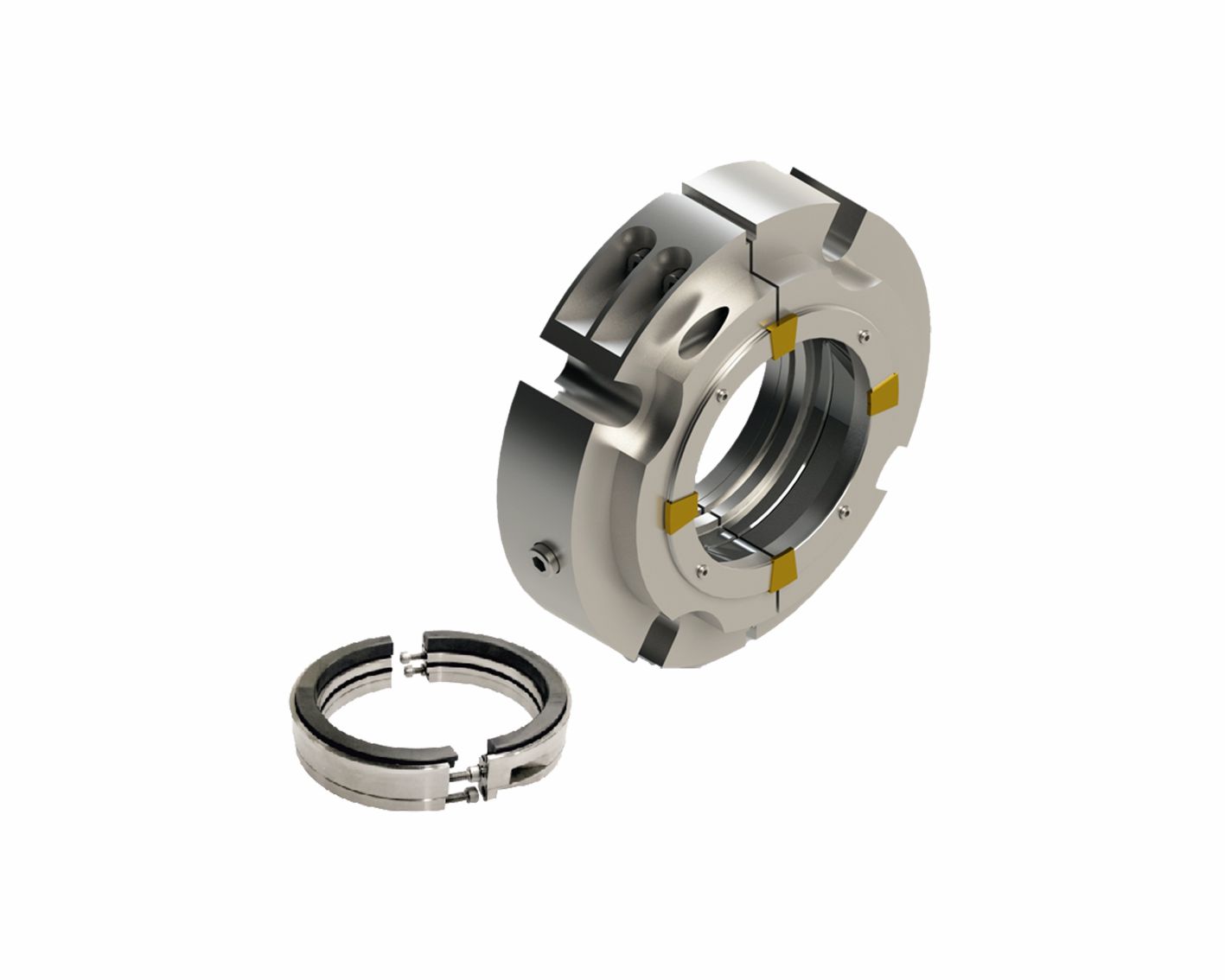

Product Description

  • Single seal in split configuration
  • Balanced design
  • Independent of direction of rotation
  • For plain shafts
  • Semi-cartridge construction
  • Built-in flushing connections
  • Designed with external pressurization
  • Factory assembled fully split single seal, 2 x 2 segments
  • Stationary design with multiple springs

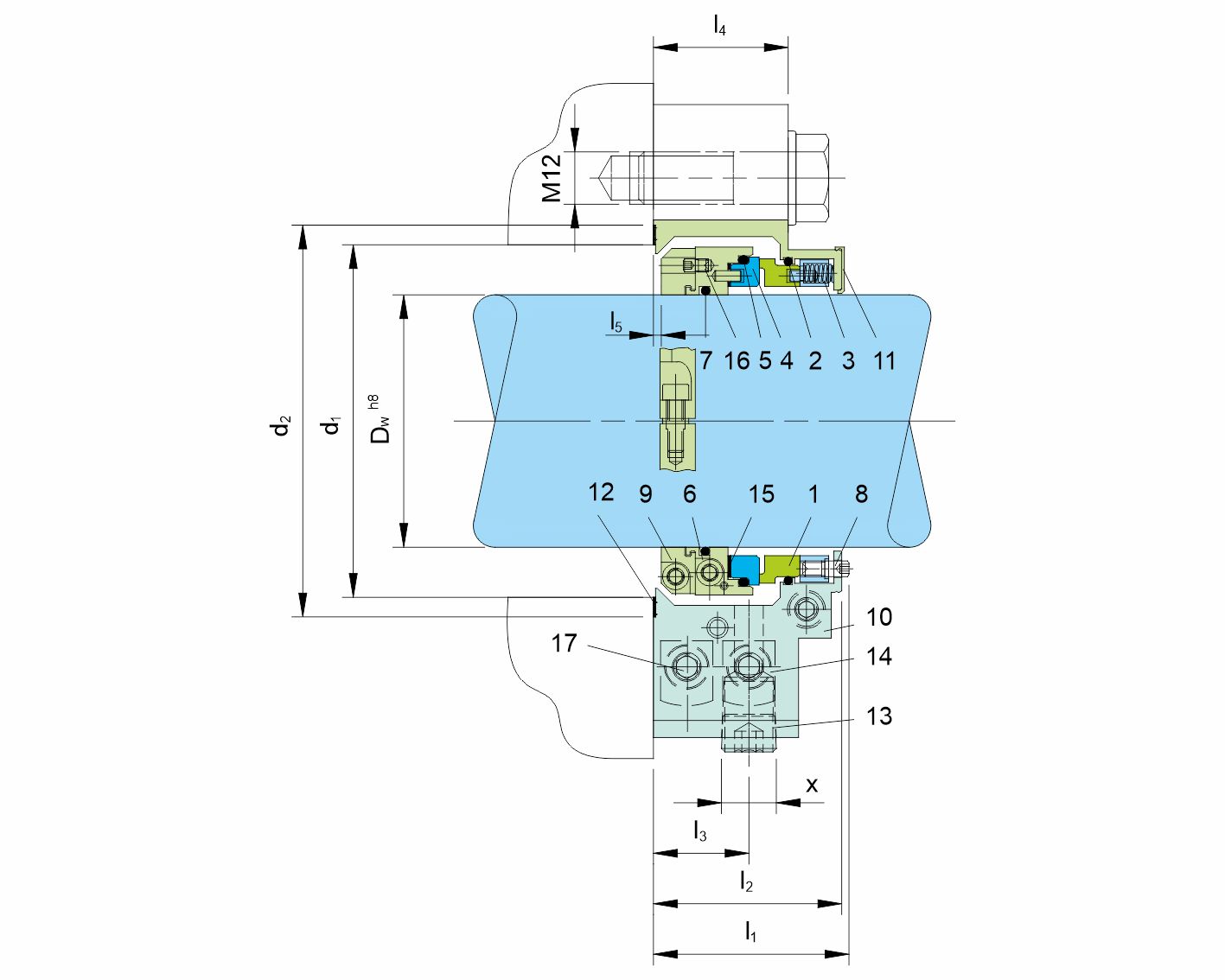

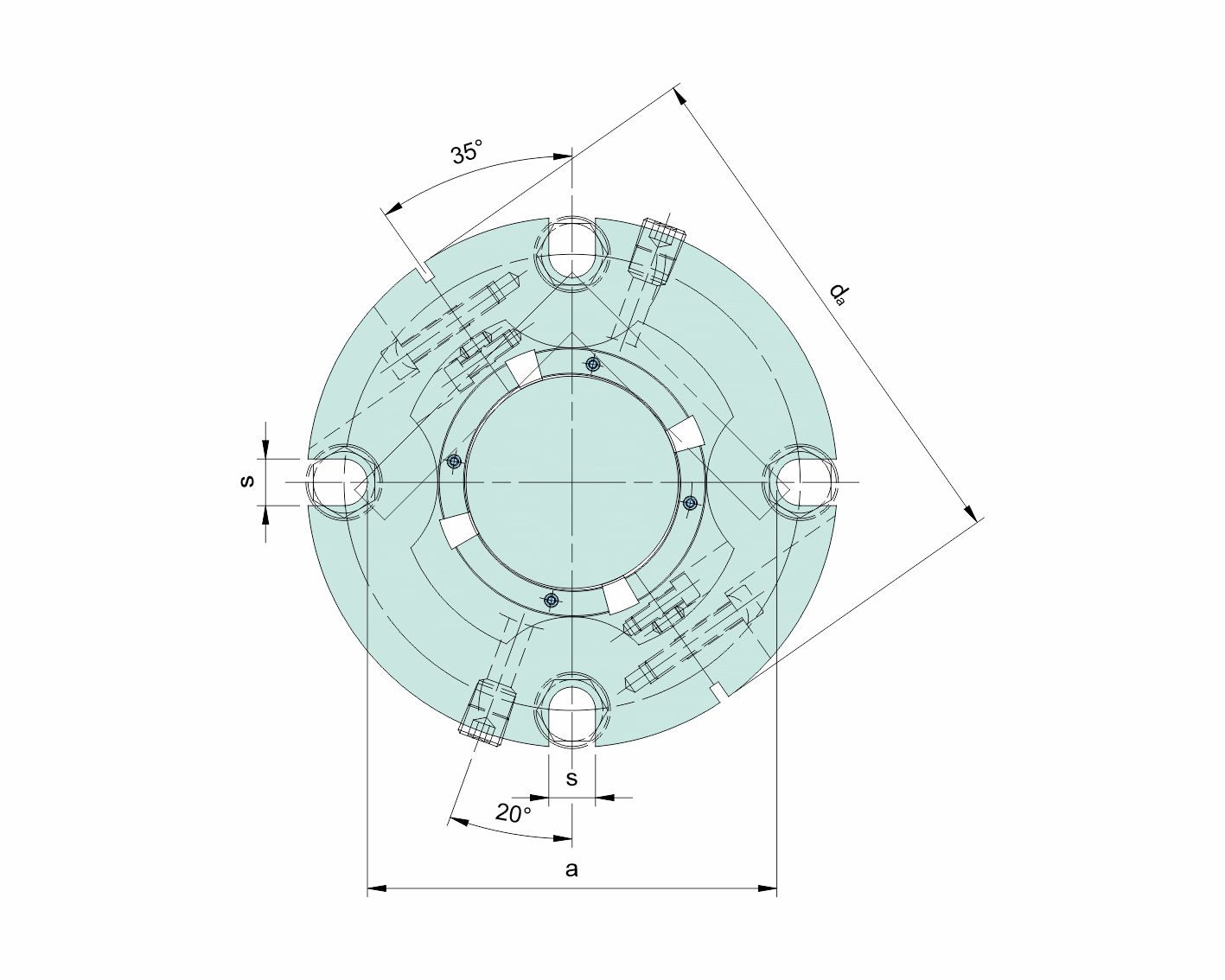

Details
Item No. Description
1 Seal face
2,5,7 O-ring
3 Spring
4 Seat
6 Driver
8 Thrust ring
9 Clamp collar
10 Housing
11 Assembly fixture
12,15 Gasket
13 Head screw plug
14 Mounting plate
16 Set screw
17 Socket head screw

Download PDF
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Technical Features
  • Economical to assemble as the complete dismantling of the equipment is not necessary to install the seal
  • Reduces down time due to ease in installation
  • Rugged seal construction
  • Distortion of the seat is avoided by mechanical decoupling of the clamping ring
  • Ease in installation due and no modifications are required because the seal is located outside of the stuffing box
  • Due to the stationary design and the elastic seat mounting a high tolerance of shaft deflections can be accommodated
  • Low leakage is achieved by the elimination of secondary seals which eliminates leakage paths between split components
  • Shaft is protected by uniform torque transmission through the clamping ring which prevents damage caused by set screws.
  • Springs are product protected to avoid contamination and clogging
  • Agitators
  • Chemical Industry
  • Centrifugal pumps
  • Conveying pulp with stock pumps
  • Cooling water pumps for energy generation
  • Conveying timber to refiners with pumping screws
  • Circulation of pulp-and-water mixtures in storage vessels
  • Displacement pumps
  • Process industry
  • Petrochemical Industry
  • Power Plant Technology
  • Pulp and paper industry
  • Pump stations for waste water treatment
  • Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q2)
  • Seat: Silicon carbide (Q2)
  • Secondary seals: FKM (V), EPDM (E), NBR(P)
  • Springs: CrNiMo steel (G)
  • Metal parts: CrNiMo steel (G)
  • Shaft diameter: d1 = Upto...150mm (Upto... 6.000’’)
  • Pressure: p1 = 10 bar (145 PSI)
  • Temperature: t = -40 °C... +150 °C (- 40 °F... + 300 °F),
    above 80 °C (175 °F) flush is recommended
  • Speed = 10 m/s (33 ft/s)
  • Axial movement: ± 1.5 mm (1/16")
  • Radial movement: ± 0.8 mm (1/32")
