UFLWT800-D Dual Seal
API 682 4th Edition Category 2&3
Seal Type C (Rotating)
Configuration 3CW-BB (Contacting Wet – Back-to-Back)
Product Description
- API 682 Category 2 and 3, Type C, Arrangement 3 seal
- Dual seal in back-to-back configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- For plain shafts
- Rotary metal bellows design
- Shrink fitted seal rings and solid mating rings

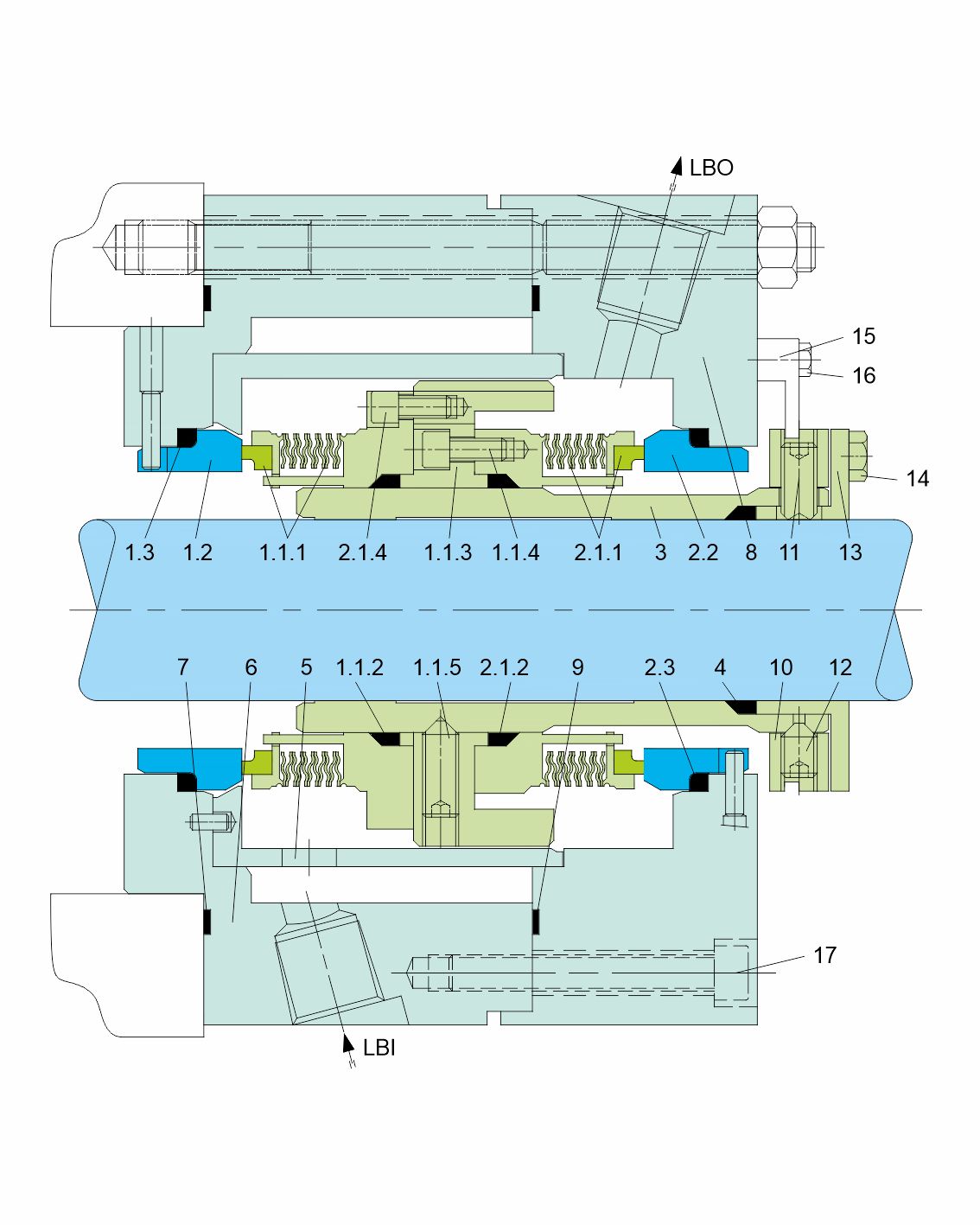

Details | |
---|---|
Item No. | Description |
1.1.1,2.1.1 | Seal ring with Bellows Unit |
1.1.2,2.1.2,1.3,2.3,4 | Sealing ring |
1.1.3 | Drive collar with pumping ring |
1.1.4,2.1.4,17 | HSH cap screw |
1.1.5,11,12 | Set screw |
1.2,2.2 | Mating ring |
3 | Shaft sleeve |
5 | Adapter |
6 | Intermediate gland |
7,9 | Gasket |
8 | Gland |
10 | Set ring |
13 | Pusher ring |
14,16 | Hexagon screw |
15 | Assembly plate |
LBI | Liquid Barrier IN |
LBO | Liquid Barrier OUT |
