Supply Systems & Components

HED
Heat Exchangers

HED

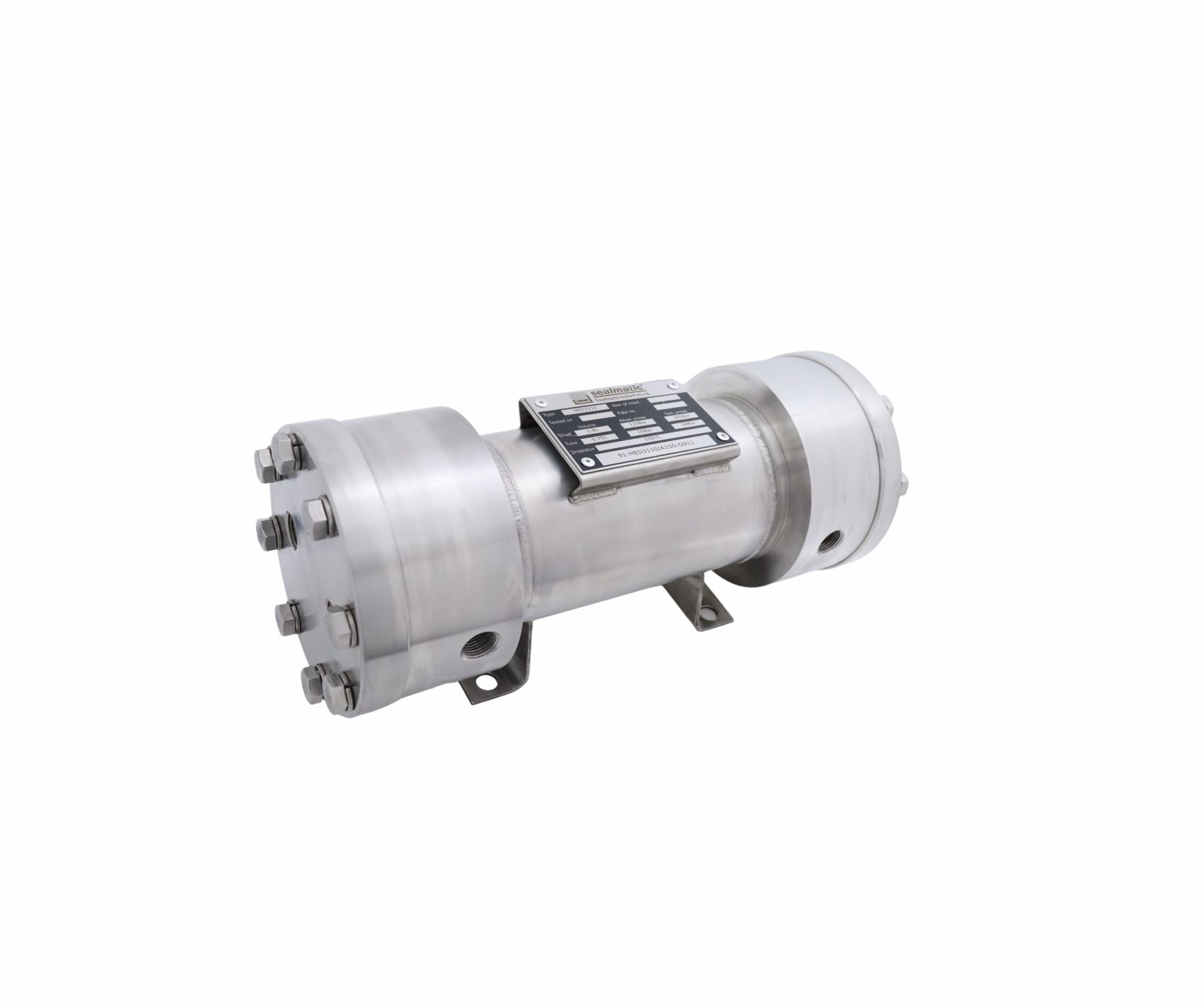

Product Description

  • Circulation in accordance with API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41
  • HED designed heat exchanger is employed to cool process/barrier fluids in seal supply systems.
  • Construction of the vessel is in a tubular design with integrated guide plates, the process/barrier medium is directed through the shell of the HED and the cooling medium through the tubes.
Details

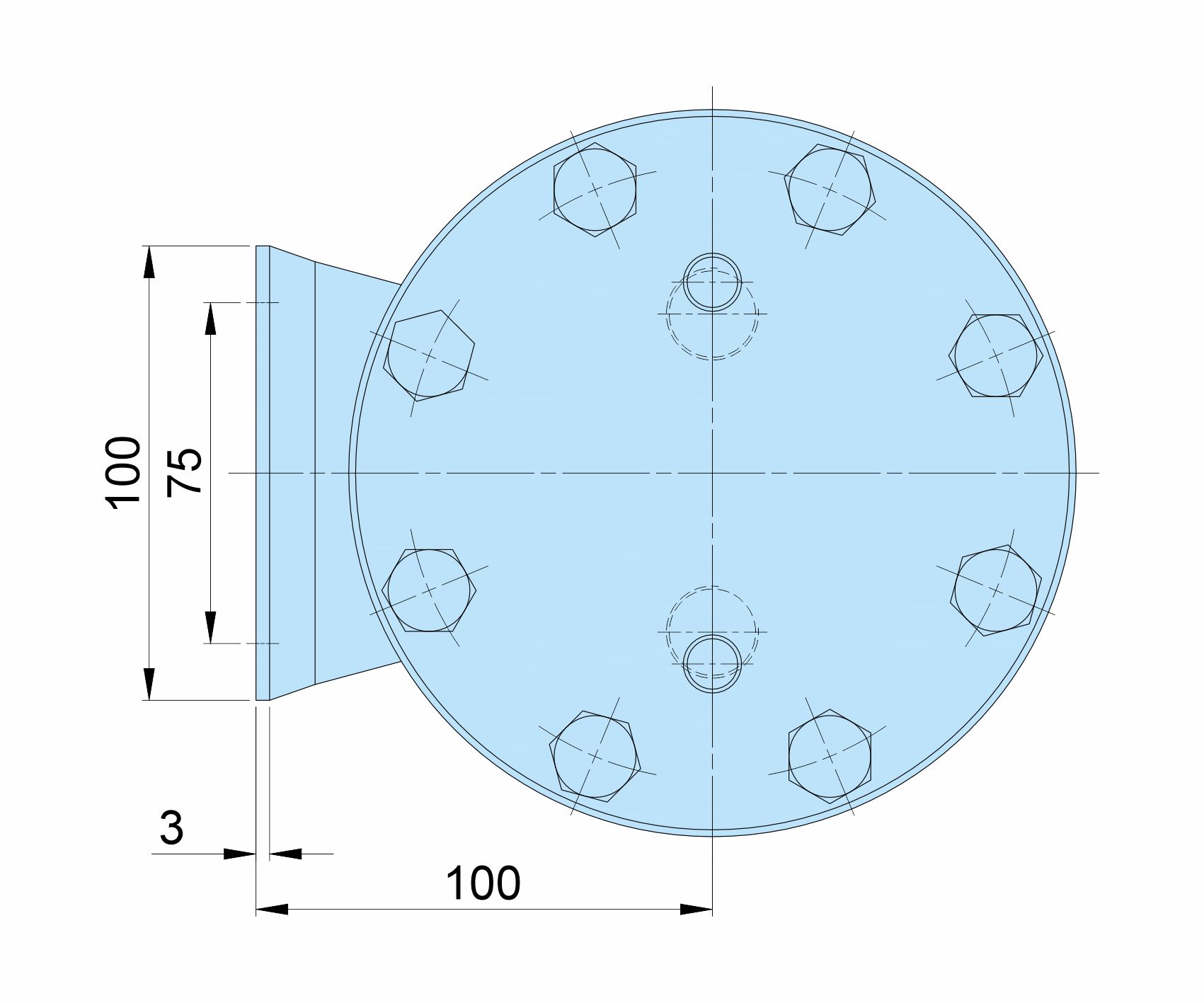

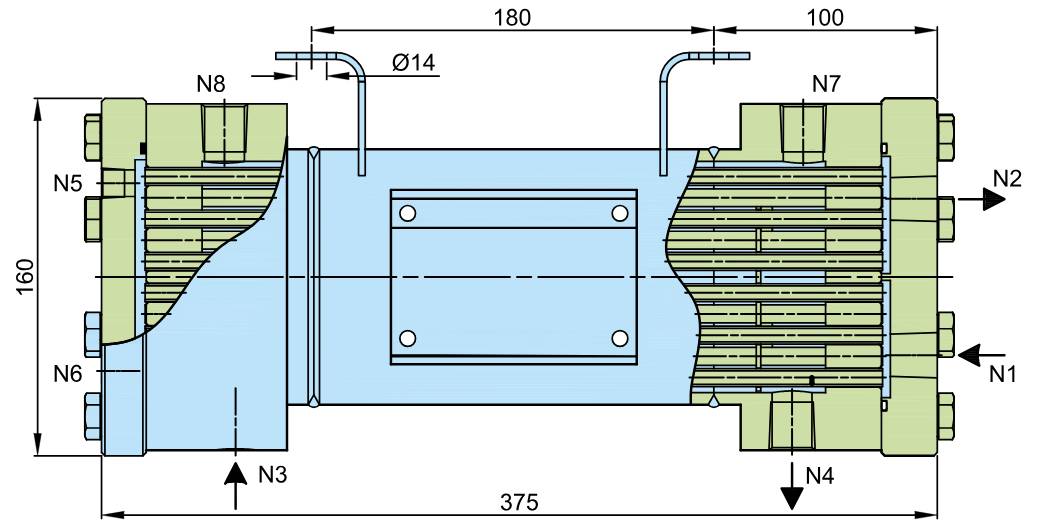

Item No. Description
N1 Cooling water IN
N2 Cooling water OUT
N3 Process/barrier medium IN
N4 Process/barrier medium OUT
N5 Cooling circuit vent
N6 Cooling water drain
N7/N8 Process/barrier circuit vent
