Standard Mechanical Seals For Pumps & Compressors

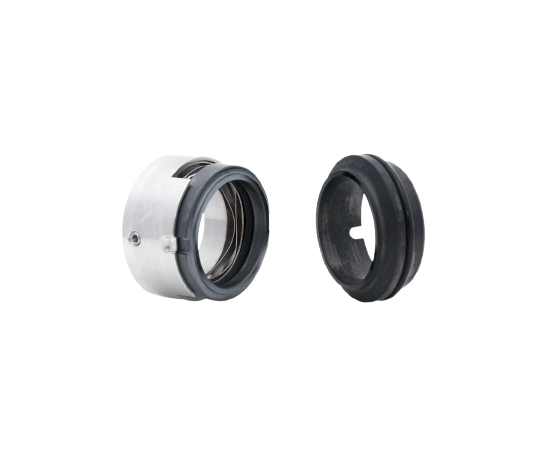

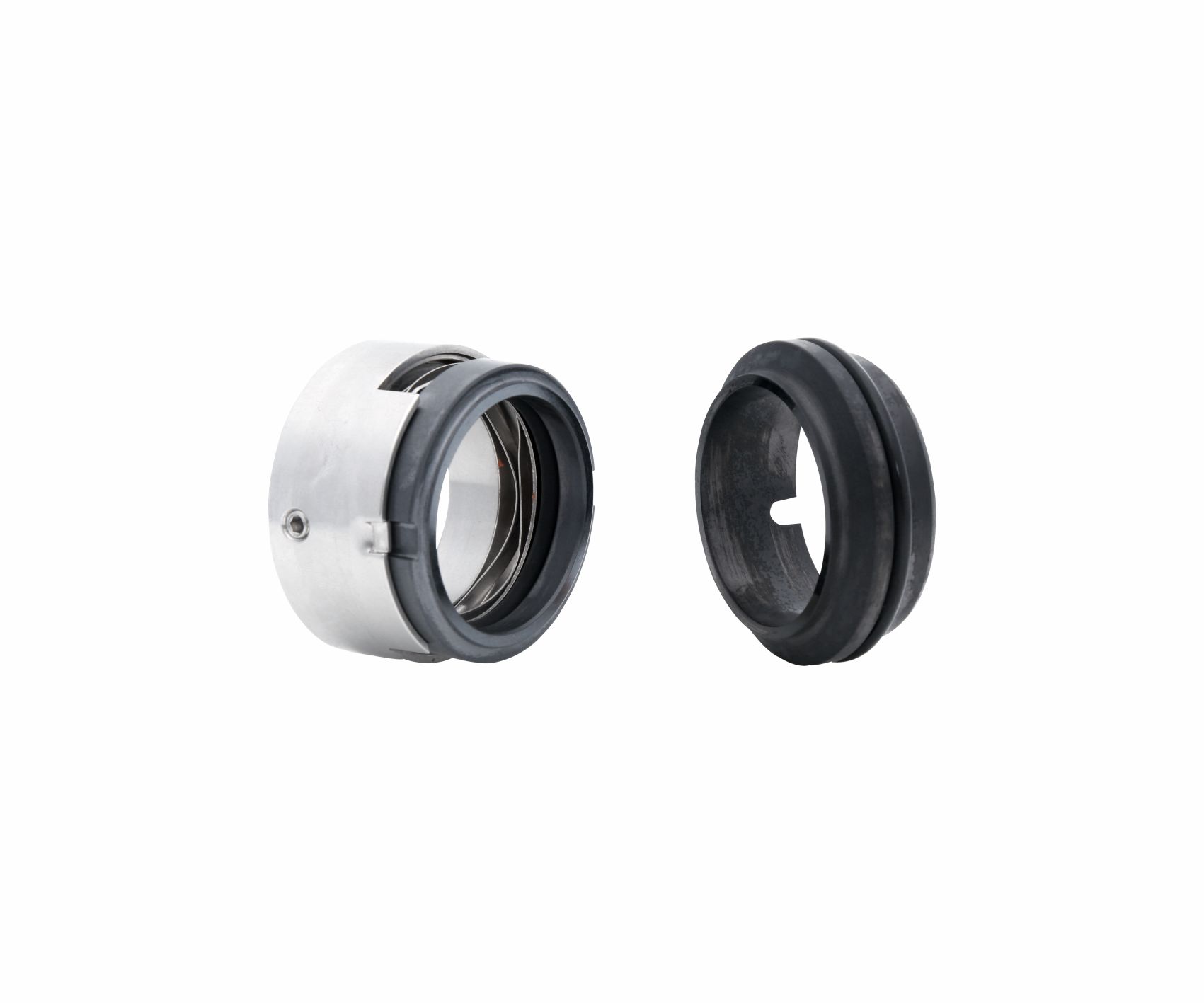

U700N

U700N

Product Description

  • Single seal configuration
  • Unbalanced design
  • Independent of direction of rotation
  • For plain shafts
  • Multiple or wave springs rotary construction
  • Pumping device available for increased efficiency in circulation
  • Sealing with FEP & Spring energized PTFE seals also available on request

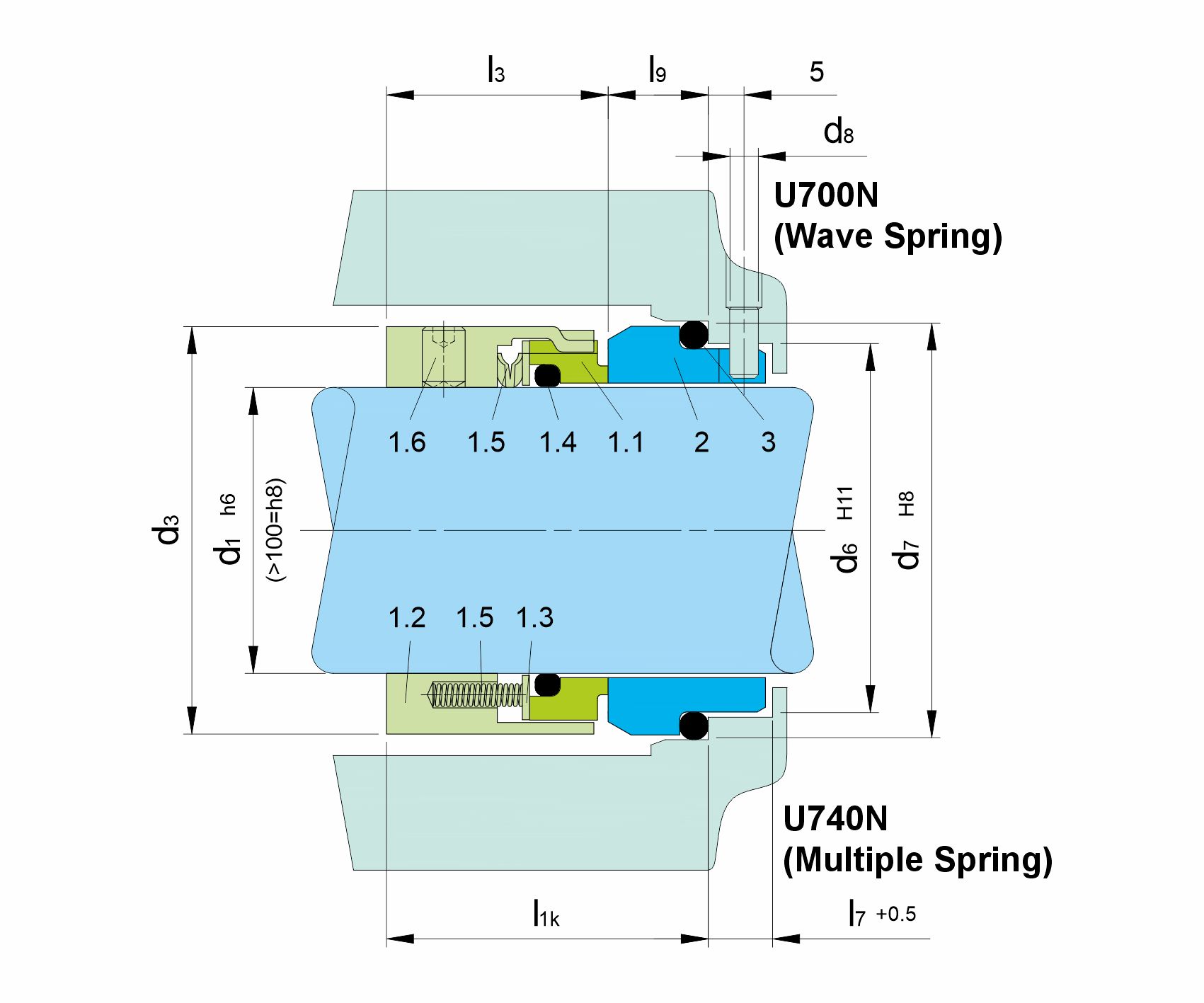

Details
Item No. Description
1.1 Seal face
1.2 Drive collar
1.3 Thrust ring
1.4 O-Ring
1.5 Spring
1.6 Set screw
2 Seat (G9)
3 O-Ring
