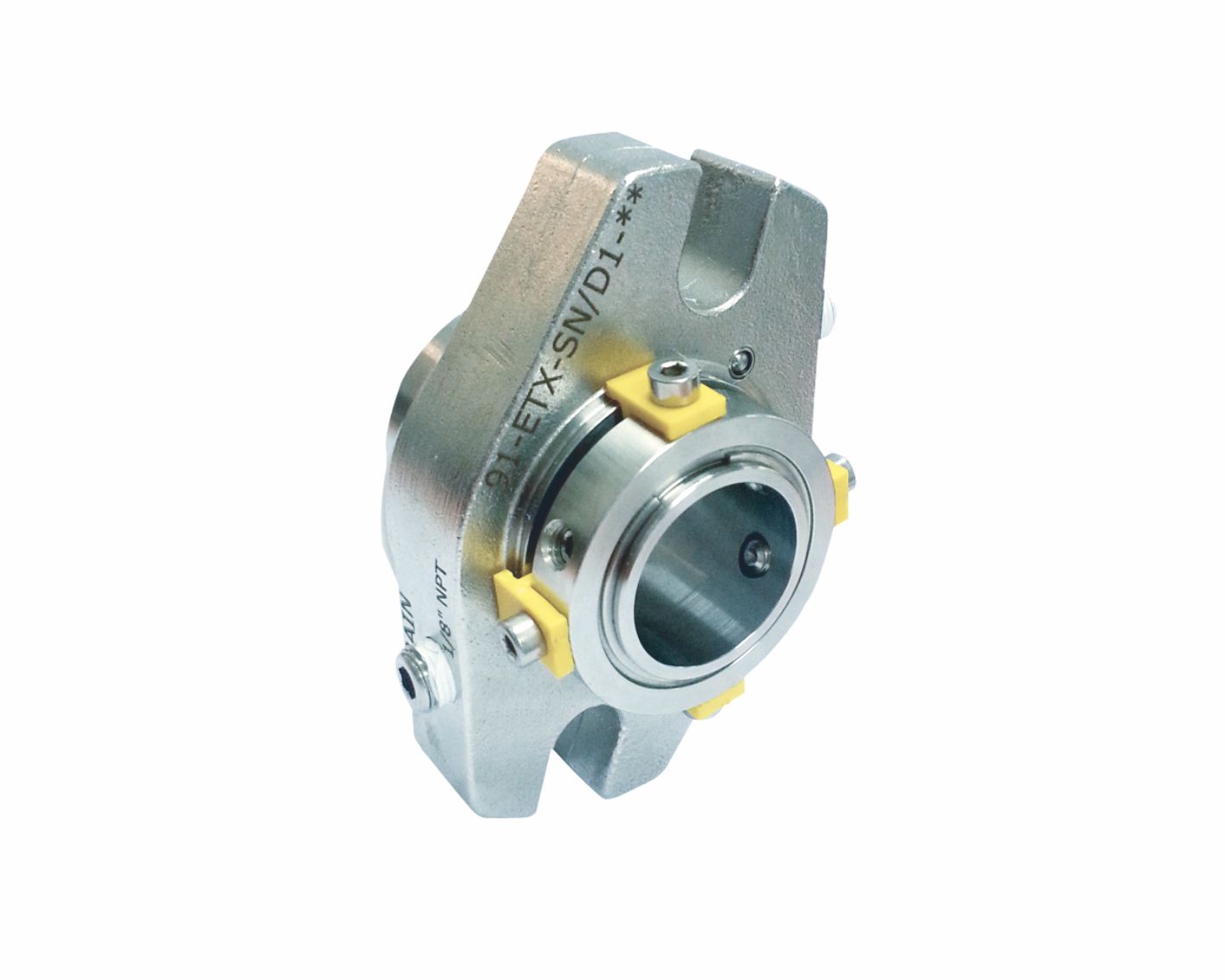

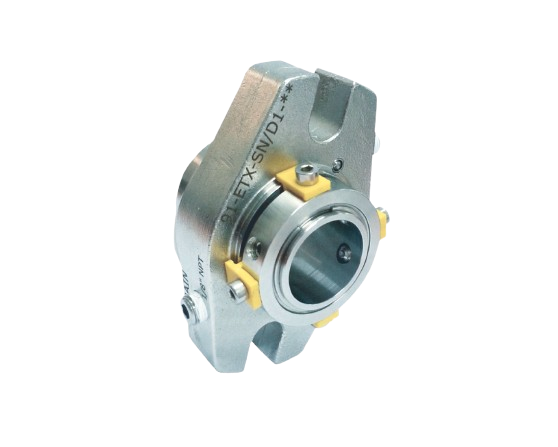

ETX Single Seals

ETX Single Seals

Product Description

  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Available with flush and quench connections

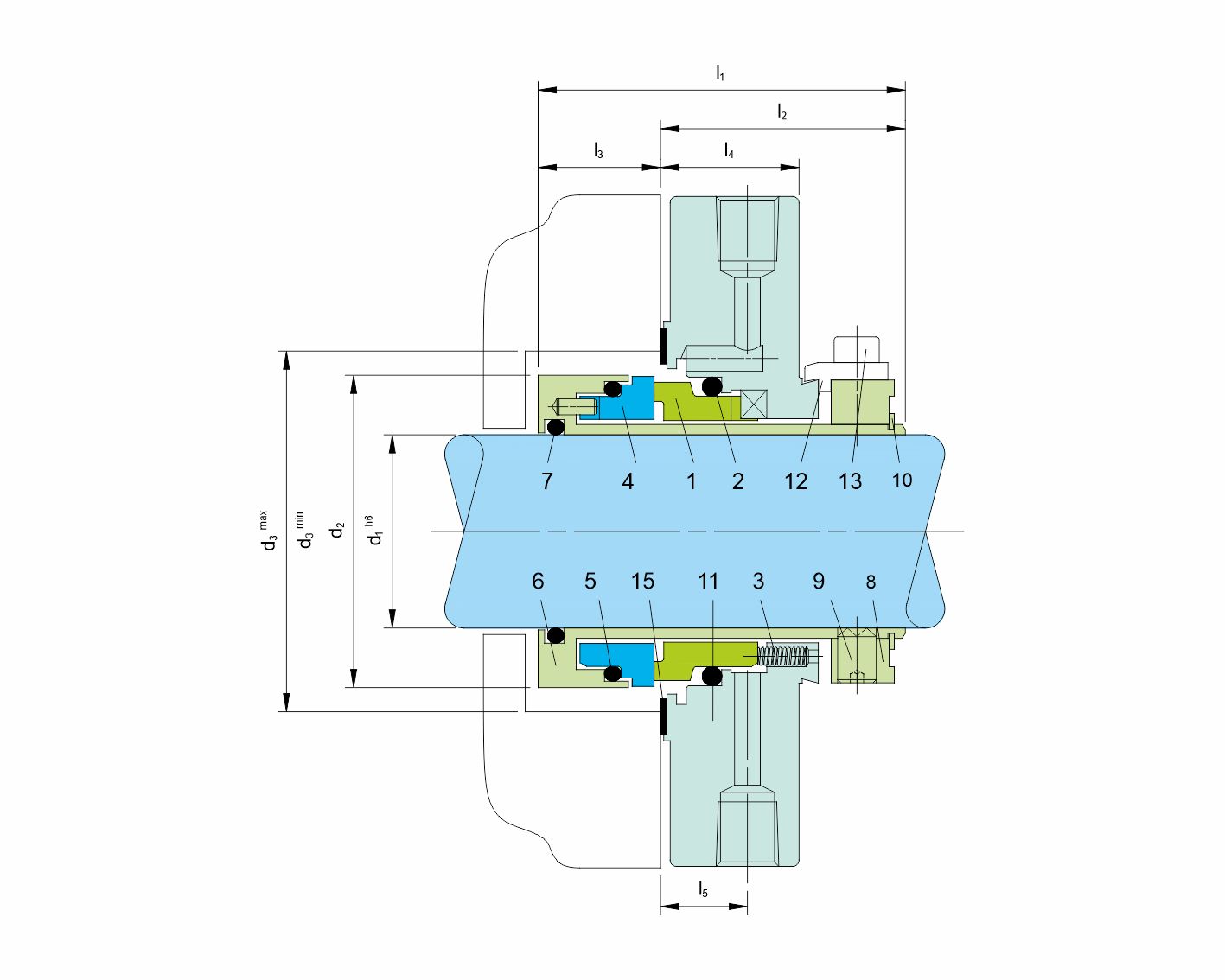

Details
Item No. Description
1 Seal face
2, 5,7 O-Ring
3 Spring
4 Seat
6 Shaft sleeve
8 Drive collar
9 Set screw
10 Snap ring
11 Cover
12 Assembly fixture (remove after installation)
13 HSH Cap Screw
14 Plug
15 Gasket
