Seal Supply Systems

GPS

Product Description

  • Available with a wide range of different instruments for safe operation due to the incorporated pressure regulator with integrated filter system mounted on a plate or in housing. For operating pressures up to 12 bar (174 PSI).

Download PDF
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Technical Features
  • Gas supply systems GPS are specially designed for contact-free operation for gas-lubricated mechanical seals
  • The gas supplied from the supply network (e.g., air or nitrogen) is regulated/monitored by the GPS in accordance with the requirements of the gas seals
  • The GPS systems are equipped with alarm and / or switch-off points depending on specific safety requirements

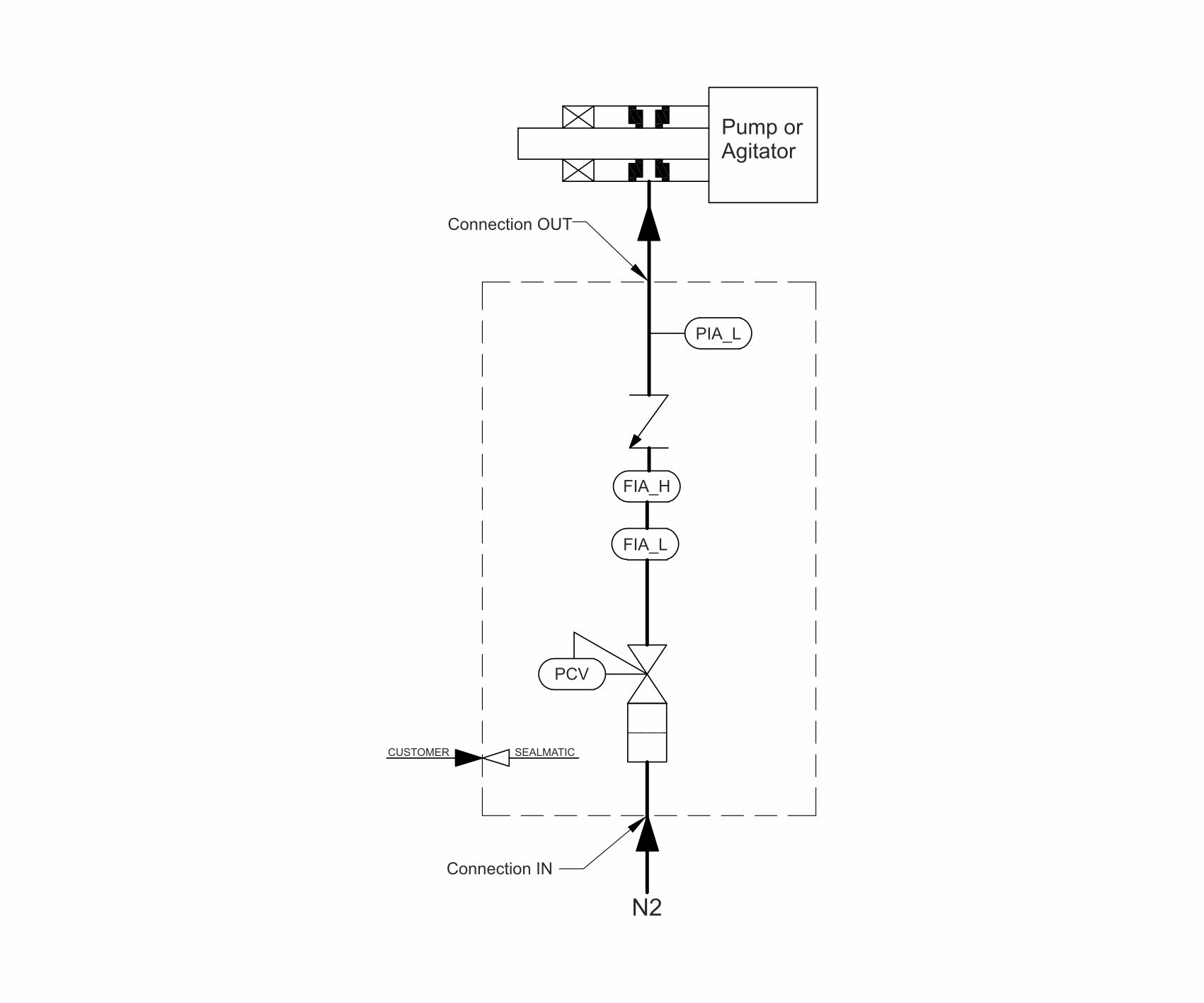

  • Circulation in accordance with API 682 / ISO 21049: Plan 74
  • GPS is a pressurize plan 74 which uses gas (e.g. Nitrogen) as a barrier medium for gas lubricated mechanical seals
  • The barrier gas pressure, p3 must always be higher than the medium pressure, p1
  • For individual seal types, the minimum pressure difference (Δp) is specified separately
  • Chemical industry
  • Petrochemical industry
  • Power plant technology
  • Refining technology
  • Oil and gas industry

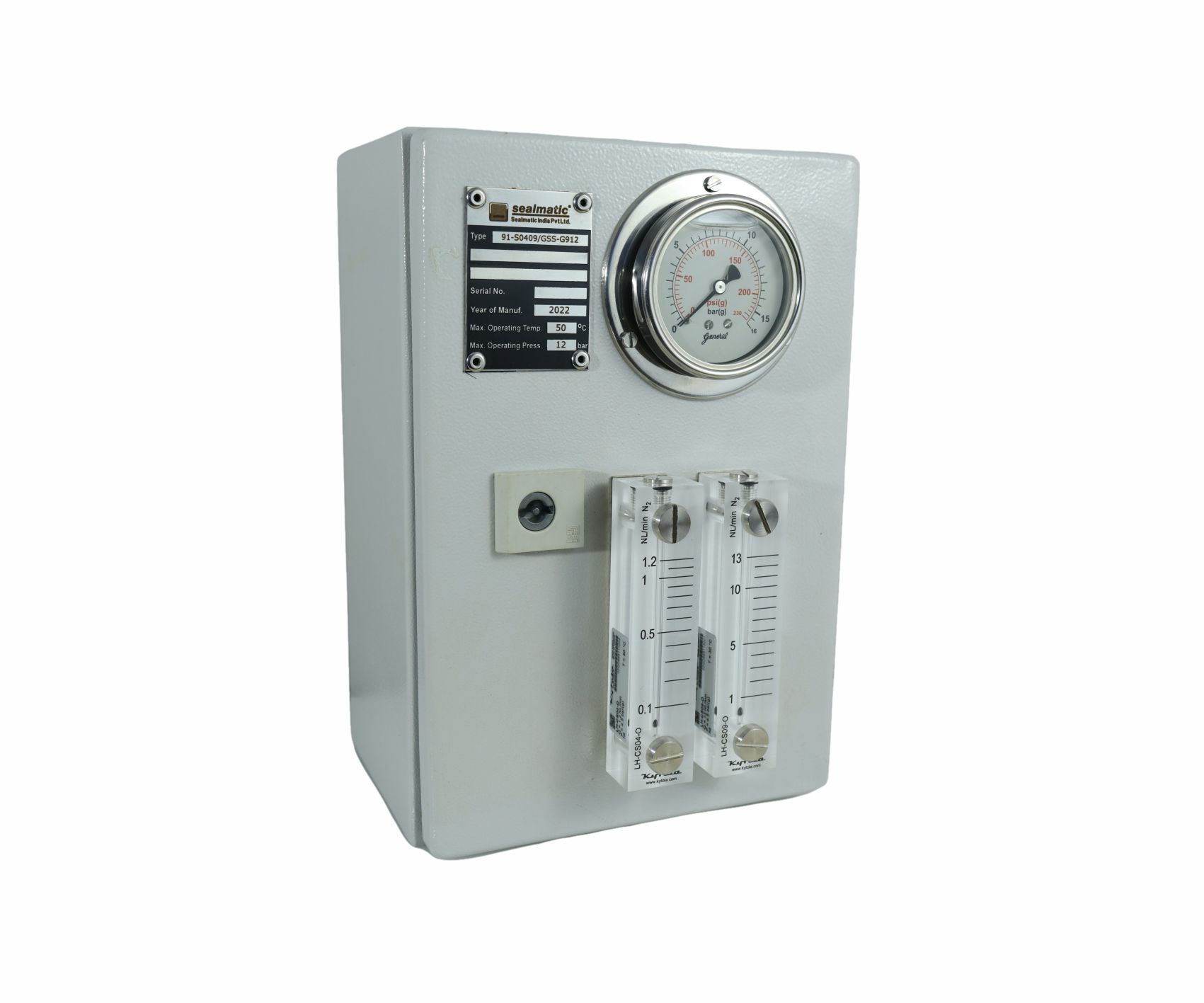

  • GPS System mounted in a housing or can be mounted on a plate
  • Different instruments with wide scope available for safe operation
