API 682 4th Edition
Category 2/3 - 1CW - FL

UFLWT800 Single Seal
Category 2/3 1CW-FL

UFLWT800 Single Seal

API 682 4th Edition Category 2&3
Seal Type C (Rotating)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)

Product Description

  • API 682 Category 2 and 3, Type C, Arrangement 1 seal
  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge Construction
  • For plain shafts
  • Rotary metal bellows design
  • Shrink fitted seal ring and solid stationary ring

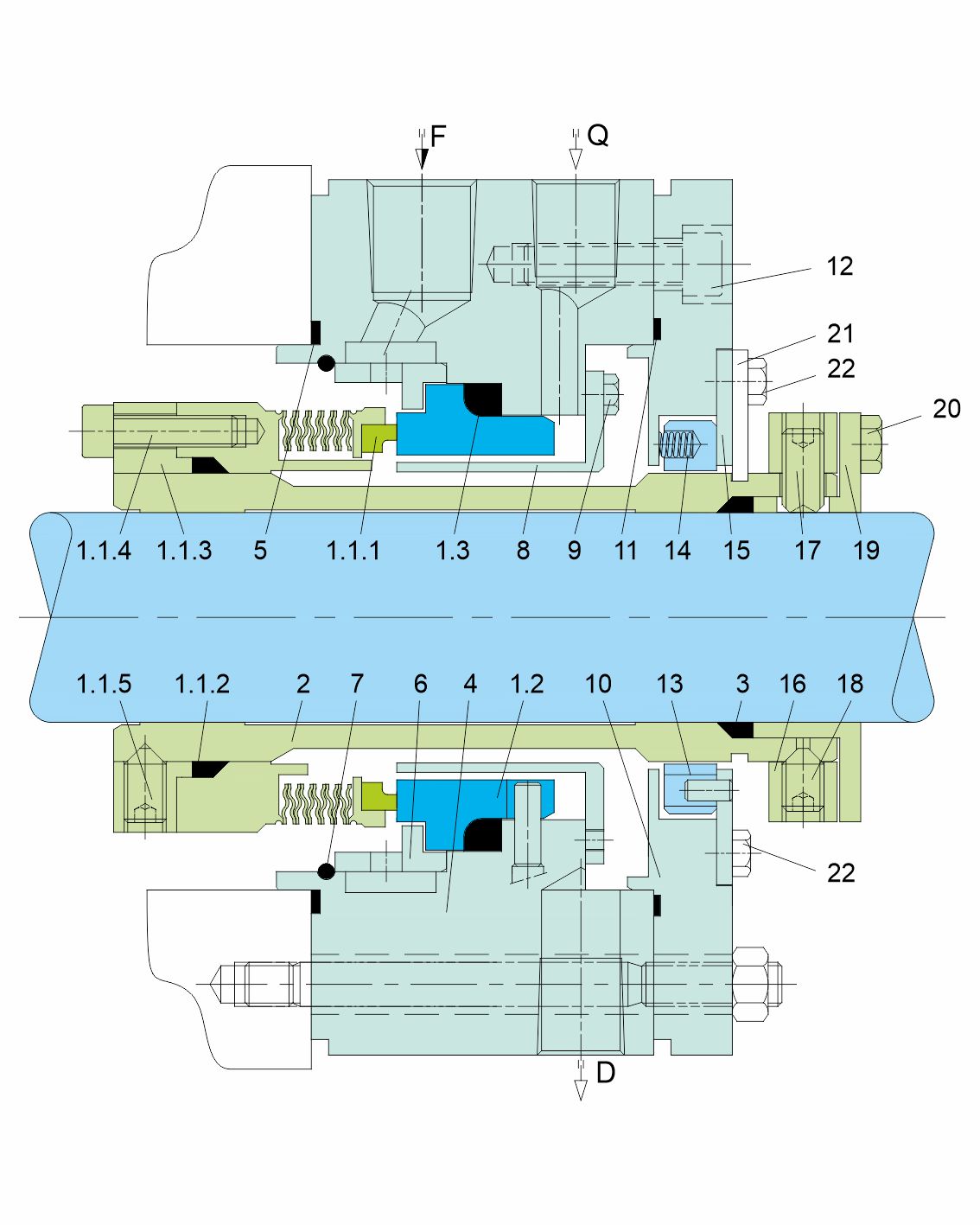

Details
Item No. Description
1.1.1 Seal ring with Bellows Unit
1.1.2,1.3,3 Sealing ring
1.1.3 Thrust ring
1.1.4,12 HSH cap screw
1.1.5,17,18 Set screw
1.2 Mating ring
2 Shaft sleeve
4 Gland
5,11 Gasket
6 Multi-flow distributor
7 Retaining ring
8 Quench baffle
9,20,22 Hexagon bolt
10 Cover
13 Throttle bushing
14 Spring
15 Washer
16 Set ring
19 Pusher ring
21 Setting plate
F Flush
Q Quench
D Drain
