API 682 4th Edition
Category 2/3 - 3CW - FF

UFL650-D Dual Seal
Category 2/3 3CW-FF

UFL650-D Dual Seal

API 682 4th Edition Category 2&3
Seal Type C (Stationary) Configuration 3CW-FF (Contacting Wet – Face-to-Face)

Product Description

  • API 682 Category 2 and 3, Type C, Arrangement 3 seal
  • Dual seal in face-to-face configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • For plain shafts
  • Stationary metal bellows design
  • Shrink fitted seal rings and solid mating rings

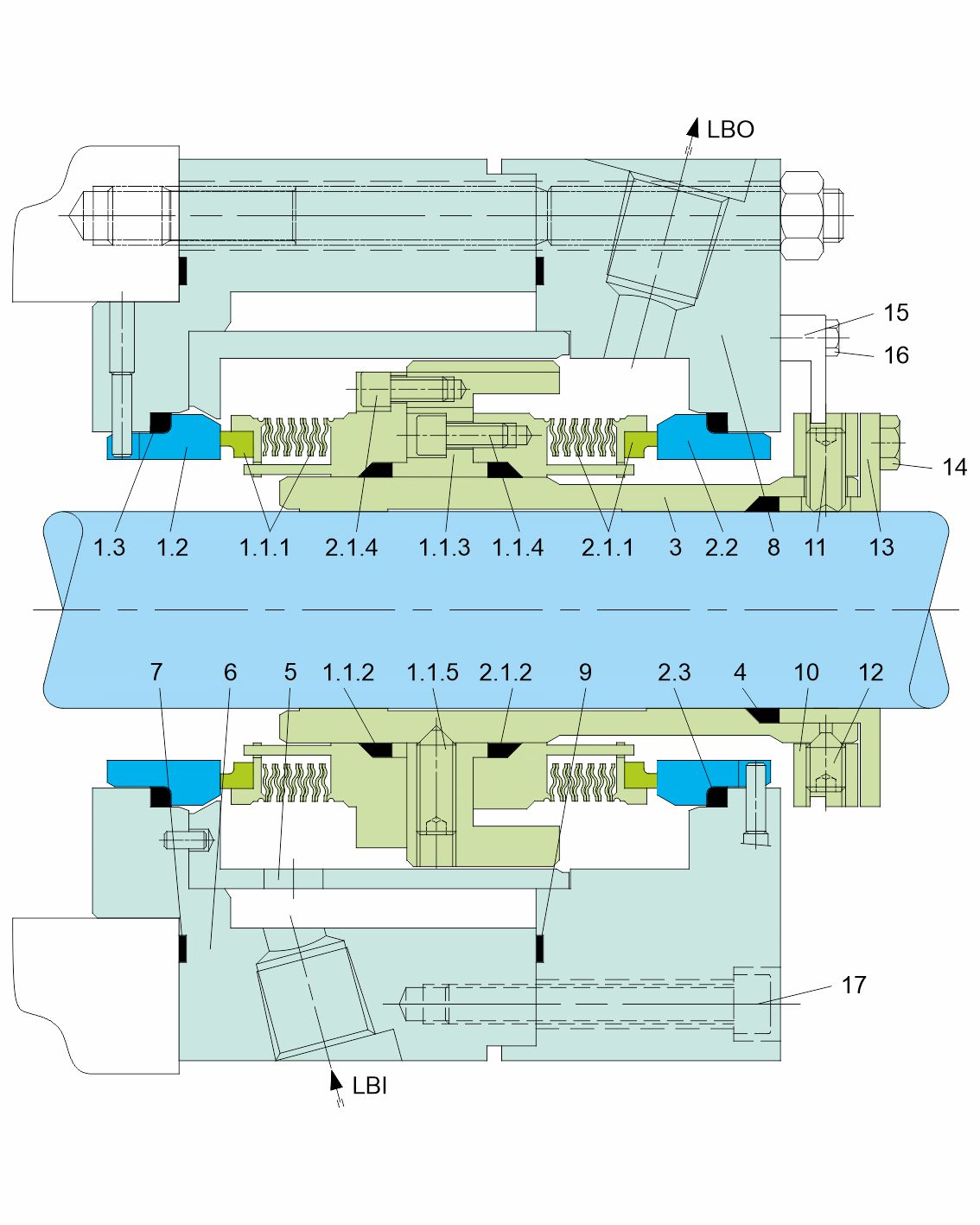

Details
Item No. Description
1.1.1, 2.1.1 Seal ring with Bellows unit
1.1.2, 2.1.2,6,9 Gasket
1.2, 2.2 Mating ring
1.3,2.3,4 Sealing ring
1.4, 2.4,8 HSH cap screw
1.5 Lock ring
1.6,11,12 Set screw
3 Shaft sleeve
5 Intermediate gland
7 Gland
10 Set ring
13 Pusher ring
14,16 Hexagon bolt
15 Assembly plate
LBI Liquid Barrier IN
LBO Liquid Barrier OUT
