Heat Exchangers

HEK

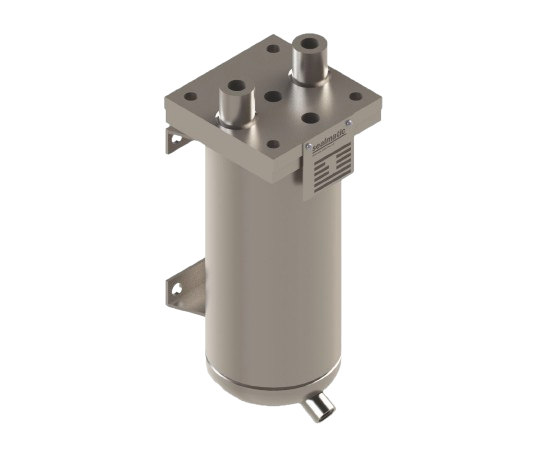

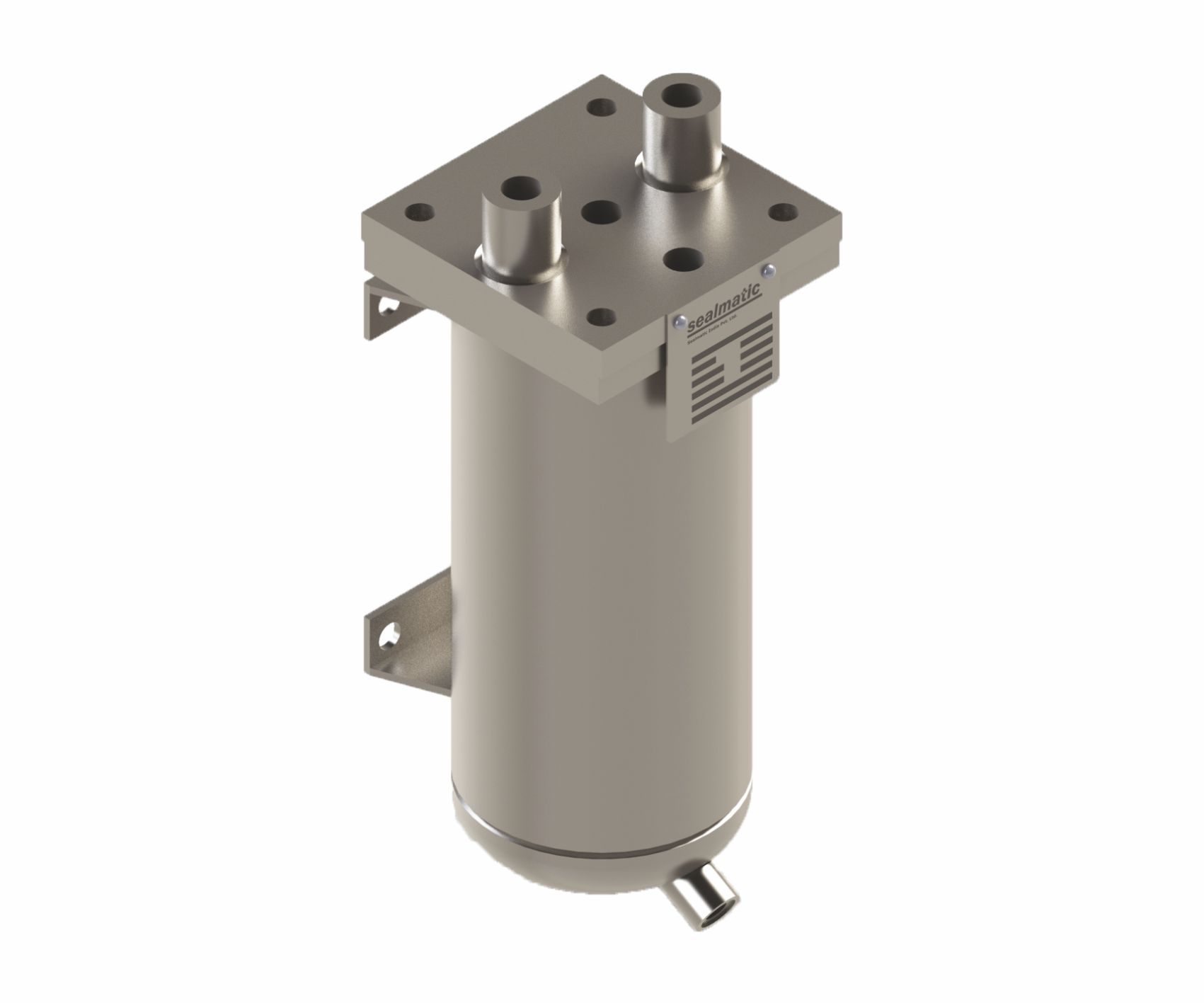

Product Description

  • Circulation in accordance with API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41

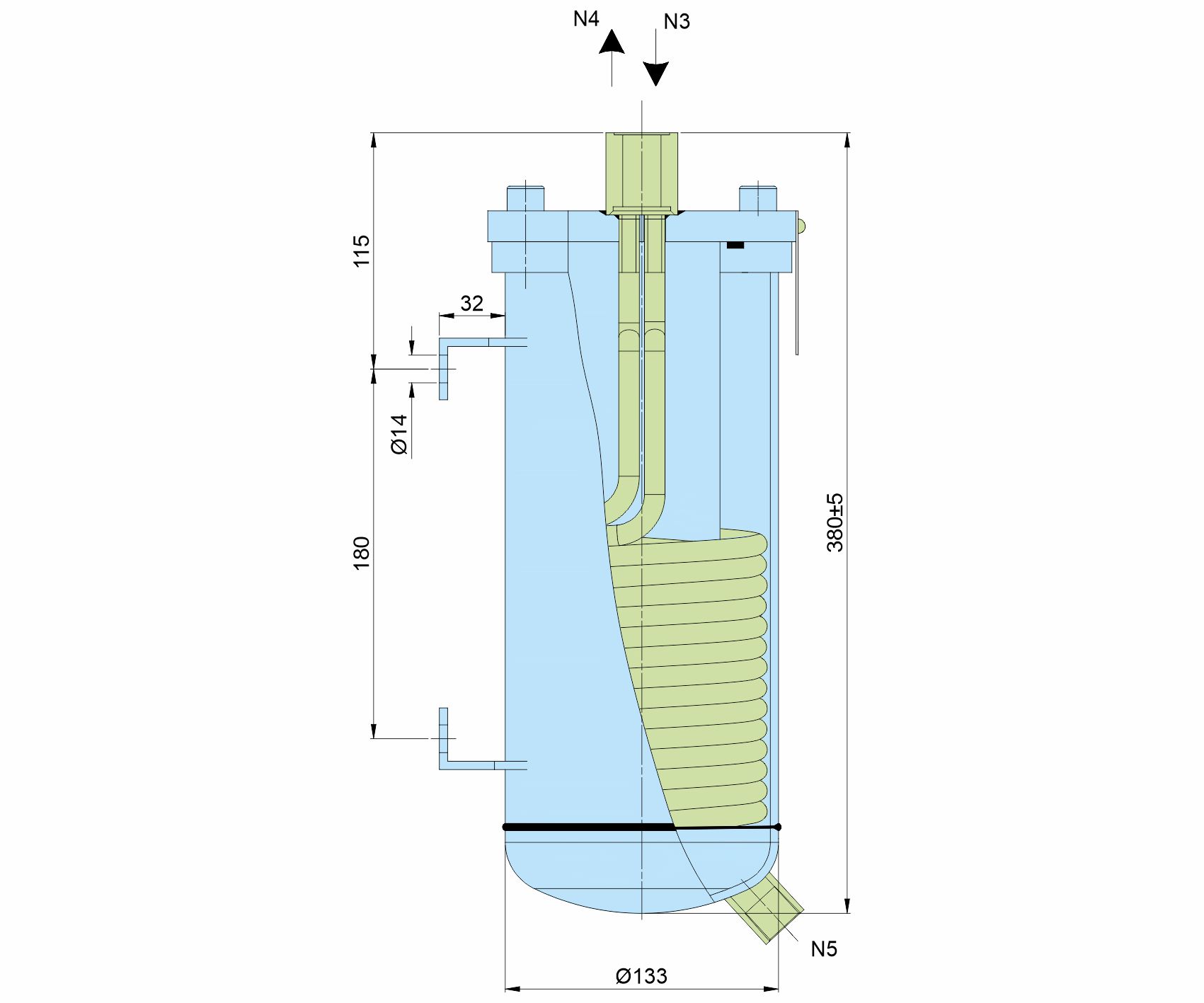

  • HEK designed heat exchanger is employed to cool process/barrier fluids in seal supply systems. The heat exchanger has a wound double helix around the guide tube, the process/barrier medium is directed through the shell of the HEK and the cooling medium through the tubes

Download PDF
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Technical Features
  • Cooling capacity up to 10.5kW
  • Cost effective solution
  • Effective cooling achieved with wound double helix around a guide tube
  • Designed for varied applications due to construction in stainless steel
  • For optimum and simple cleaning, the heat exchanger can be dismantled
  • Chemical industry
  • Petrochemical industry
  • Power plant technology
  • Refining technology
  • Oil and gas industry
  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • Mount vertically with connections pointing up. Provide for external venting on the process/barrier medium side (the user has to install a vent at the highest point of the pipe work).
  • Cleaning:
    Cooling water side: the area around the tubes can be cleaned mechanically after the housing is removed.
  • Process/barrier medium side: flush with a suitable solvent.
