Power

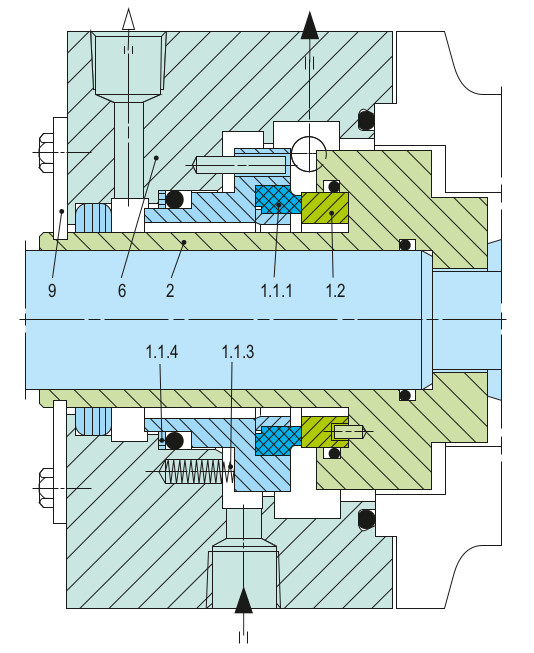

Boiler Circulation Pump

Boiler circulating pumps circulate water within the boiler to enhance boiler operation. They take suction from a header that is connected to several downcomers from the bottom of the boiler drum and discharge through additional tube circuits, the water which is pumped is at the boiler temperature and pressure. Boiler circulating pumps are designed for high temperature (usually between 150°C and 315°C, depending on boiler size and rating) and high pressure (corresponding to boiler temperature and water vapor pressure).

Seal Type: SBPV/55

Media Boiler Water
Vg NA
Temperature 2850 C
Pressure 125 Bar

Boiler Feed Pump

A boiler feedwater pump is a specialised pump primarily employed to pump feedwater into a steam boiler. These pumps are normally high-pressure units that take suction from a condensate return system, and can be of centrifugal pump type. Boiler feed pumps are also referred to as feed pumps.

Seal Type: SBV/163

Media Boiler Feed Water
Vg 57 m/s
Temperature 1850 C
Pressure 35 Bar

Feed Pump

A feed pump is a specialised equipment that supplies water to a boiler to produce steam. For industrial purposes, a feed pump supplies a liquid for further processing. These pumps are high-pressure pumps and are generally of two types: positive displacement type feed pumps, centrifugal feed pumps.

Seal Type: SBV1/155

Media Demineralised Water
Vg 43 m/s
Temperature 1900 C
Pressure 25 Bar

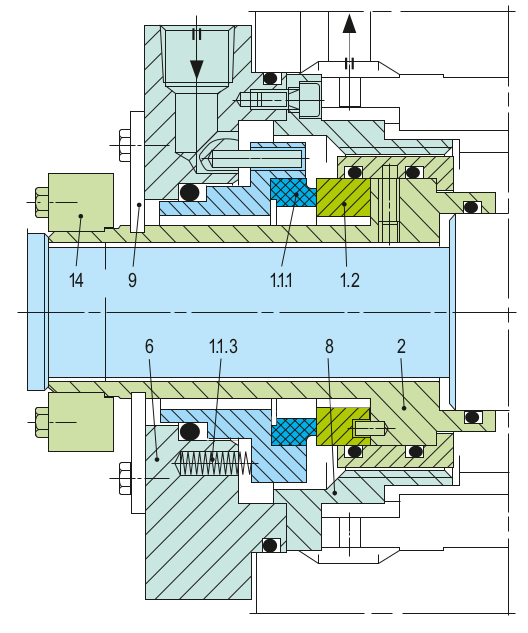

Main Feed Pump

The function of a main feed pump is to discharge the condensate boiler feed water from hot well to the boiler drum, with the rotation of shaft and impeller the hot feed water is thrown outward radially across the walls of the pump; along the path of the flow. This increases the speed of the fluid, and so does the pressure.

Seal Type: SBF /175

Media Feed Water
Vg 45 m/s
Temperature 900 C
Pressure 40 Bar

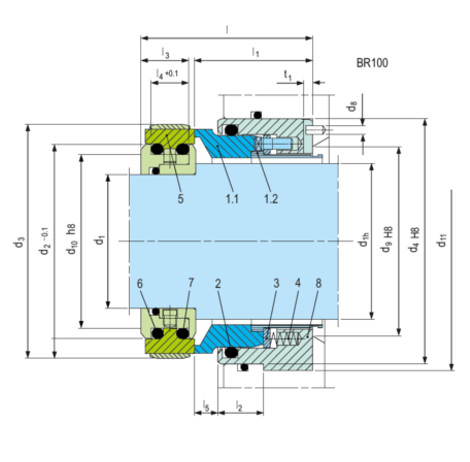

Flue Gas Desulphurization Pump

Flue Gas Desulfurization (FGD) is a set of technologies employed to remove sulphur dioxide (SO2) from exhaust flue gases of fossil-fuel power plants, as well as from the emissions of other sulphur oxide emitting processes. The FGD technology is based on a chemical reaction that occurs when the warm exhaust gases from the coal-fired boiler come into contact with limestone.

Seal Type: BR/135

Media Lime Slurry, Sulphate Solution
Vg 10 m/s
Temperature 1450 C
Pressure 16 Bar

Residue Evacuation Pump

Seal Type: BR/140

Media Sulphate Solution
RPM 1500
Temperature 800 C
Pressure 12 Bar

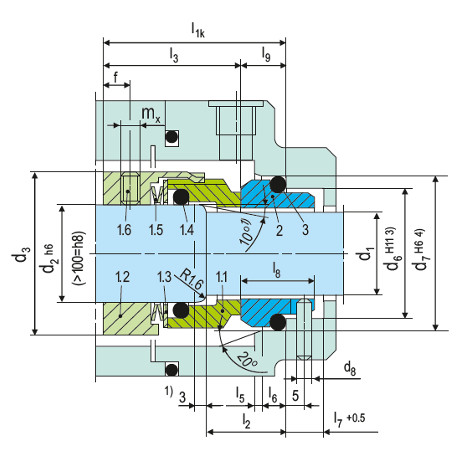

Condensate Pump

Condensate pumps are employed to collect and disperse the hot water and liquid produced by condensation from heating systems, such as gas and oil condensing boilers, from the production of refrigerated air, such as air conditioning and refrigeration systems, air dehumidifiers and evaporators, and the steam produced by heat exchangers and radiators.

Seal Type: B700N/80

Media Condensate Fluid
RPM 1450
Temperature 1200 C
Pressure 22 Bar


Power

Sealing systems featuring maximum operational reliability, convenient maintenance and low leakage rates with necessary environmental protective measures are standard requirements in modern power stations. The product range includes mechanical seals and supply systems for auxiliary and secondary pumps, boiler circulation pumps and feedwater pumps as well as mechanical seals and carbon floating ring seals for turbines, compressors and fans.
