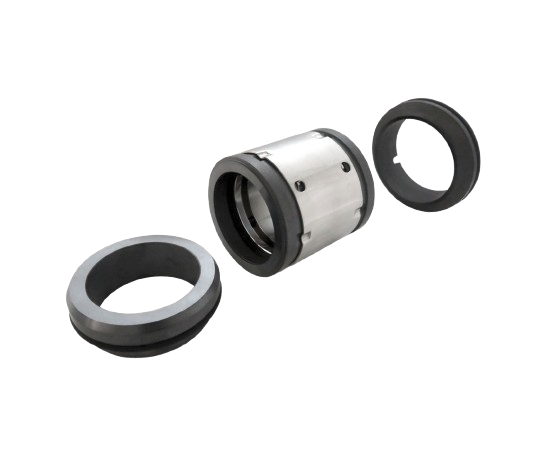

Standard Mechanical Seals For Pumps & Compressors

U740-D

U740-D

Product Description

  • Dual seal configuration
  • Unbalanced design
  • Independent of direction of rotation
  • For plain shafts
  • Multiple or wave springs rotary construction
  • Pumping device available for increased efficiency in circulation (U740F-D)
  • Sealing with FEP & Spring energized PTFE seals also available on request

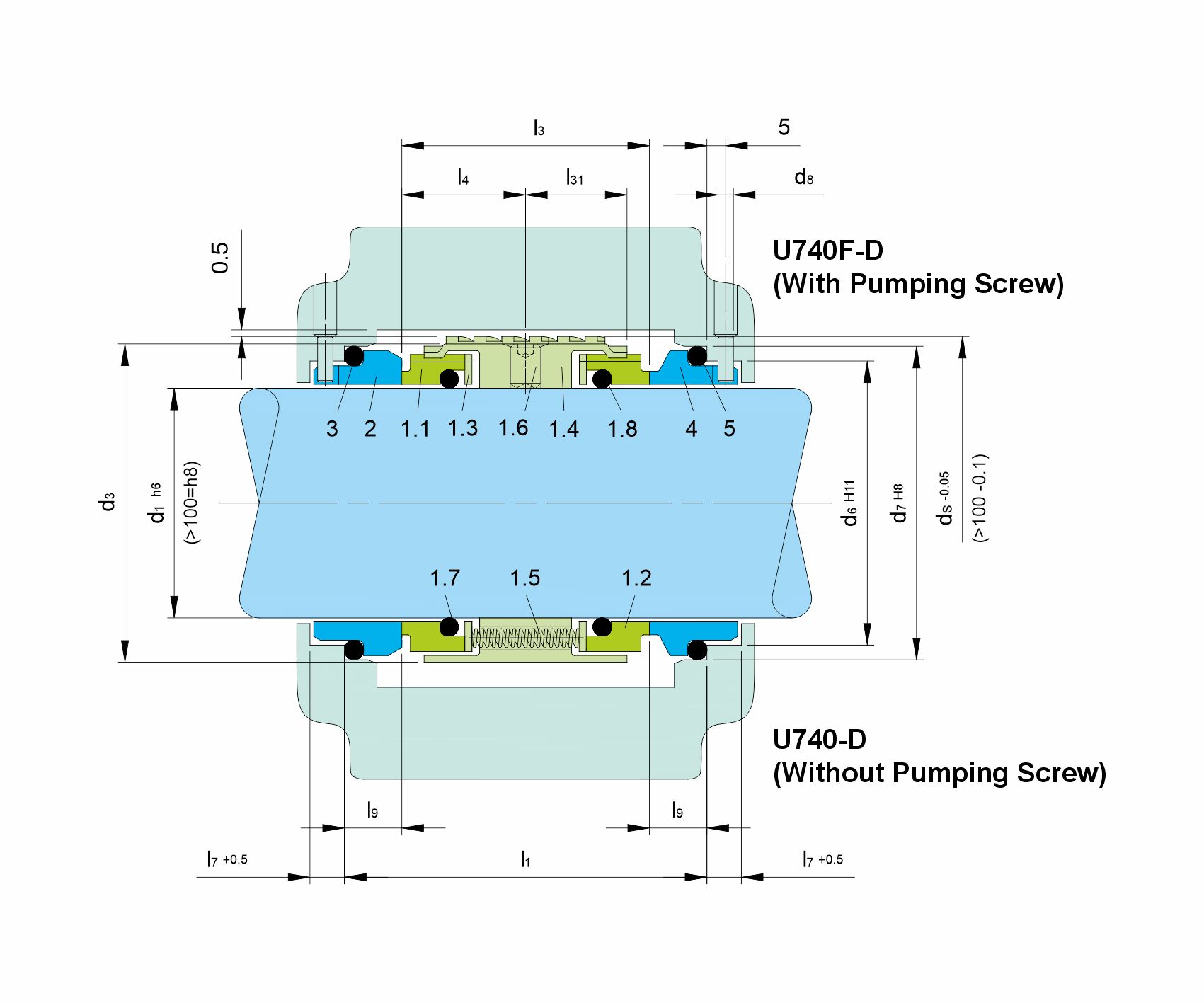

Details
Item No. Description
1.1 Seal face
1.2 Seal face
1.3 Thrust ring
1.4 Drive Collar
1.5 Spring
1.6 Set screw
1.7 O-Ring
1.8 O-Ring
2 Seat (G9)
3 O-Ring
4 Seat (G9)
5 O-Ring
